• Country
• Germany

• Manufacturer / Brand
• Neuwirth, Dipl.-Ing. H.-G.; Hemmingen /Hannover

• Year
• 1975 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 164112

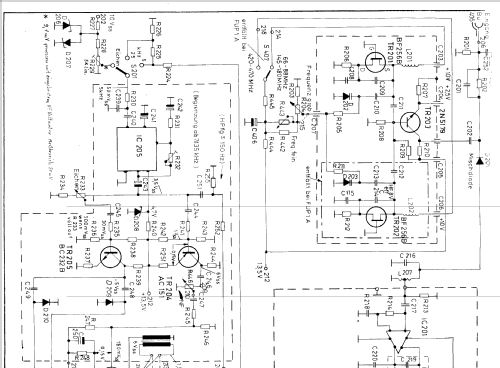

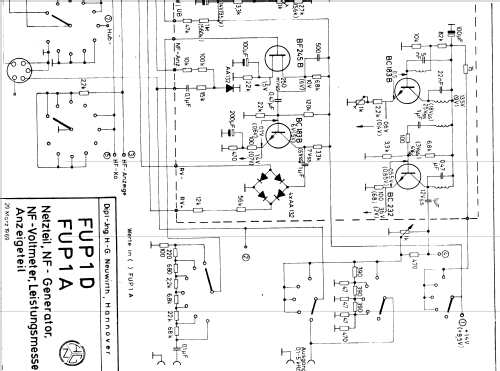

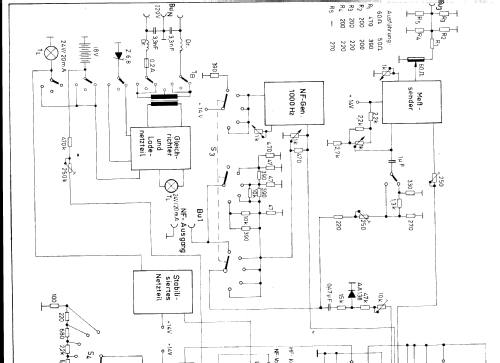

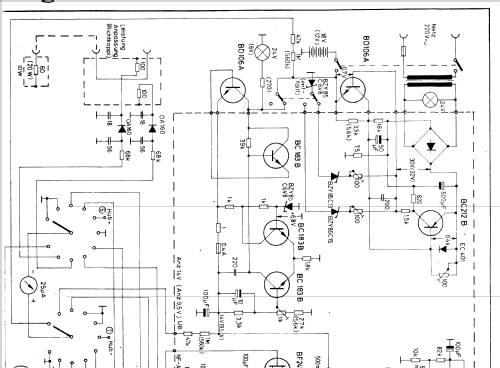

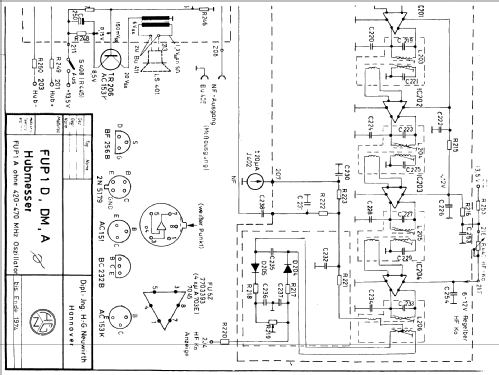

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• none

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Batteries (any type) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Funkprüfgerät FUP1D - Neuwirth, Dipl.-Ing. H.-G.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 420 x 315 x 230 mm / 16.5 x 12.4 x 9.1 inch

• Notes
• Frequenzen:65-180MHz, 420-470MHz.
  Funkprüfgerät mit eingebautem Leistungsmesser, Volltransistorisiert.

• Net weight (2.2 lb = 1 kg)
• 16 kg / 35 lb 3.9 oz (35.242 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Rudolf Müller. See "Data change" for further contributors.
