• Country
• Germany

• Manufacturer / Brand
• Neuwirth, Dipl.-Ing. H.-G.; Hemmingen /Hannover

• Year
• 1955 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 325585

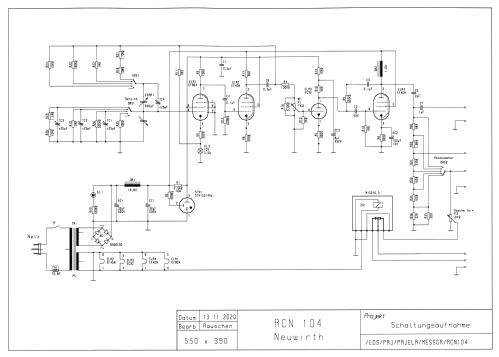

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EF804 EL42 EC92 EL41 STV150/40Z

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: RC-Generator RCN104 - Neuwirth, Dipl.-Ing. H.-G.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 300 x 210 x 234 mm / 11.8 x 8.3 x 9.2 inch

• Notes

• RC-Generator mit vier Bereichen von 30 Hz bis 300 kHz, Frequenzeinstellung über Drehkondensator.

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Author
• Model page created by Manfred Rauschen. See "Data change" for further contributors.
