AV-750

AV-750 ; Newcomb Audio (ID = 1506918) Radio AV-750 ; Newcomb Audio (ID = 1186855) Radio
AV-750 ; Newcomb Audio (ID = 1506920) Radio AV-750 ; Newcomb Audio (ID = 1506927) Radio
AV-750 ; Newcomb Audio (ID = 540430) Radio AV-750 ; Newcomb Audio (ID = 1186856) Radio
AV-750 ; Newcomb Audio (ID = 1506922) Radio AV-750 ; Newcomb Audio (ID = 1506924) Radio
AV-750 ; Newcomb Audio (ID = 1506929) Radio AV-750 ; Newcomb Audio (ID = 1506930) Radio
Use red slider bar for more.
AV-750 ; Newcomb Audio (ID = 1506918) Radio
Newcomb Audio: AV-750 [Radio] ID = 1506918 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model AV-750, Newcomb Audio Products Co.; Hollywood, (CA):
By Courtesy Of EBAY User: quentosa

Country:  United States of America (USA)
Manufacturer / Brand:  Newcomb Audio Products Co.; Hollywood, (CA)
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6AQ8 6BE6 6AU6 6AU6 6AU6 12AX7 6BQ5 6X4
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: AV-750 - Newcomb Audio Products Co.;
Material Leather / canvas / plastic - over other material
Shape Tablemodel, low profile (big size).
Notes Newcomb AV-750;

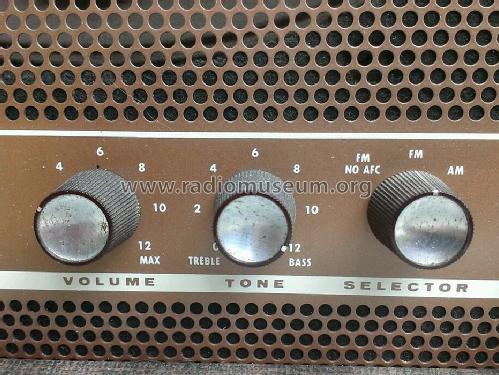

Tone control, AFC, RCA terminals for MPX & ext. amp or tape rec., ext. speaker or headphones jack, 54 W power consumption, carrying handle.
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Newcomb Audio Products Co.; Hollywood, (CA)
Here you find 55 models, 50 with images and 27 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
