109 combination console
- United States of America (USA)
- Manufacturer / Brand
- Newcombe-Hawley; St. Charles, IL.
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- Wave bands
- - without
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / 110 Volt
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Wooden case
- from Radiomuseum.org
- Model: 109 combination console - Newcombe-Hawley; St. Charles,
- Console, Highboy (legs > 50 %).

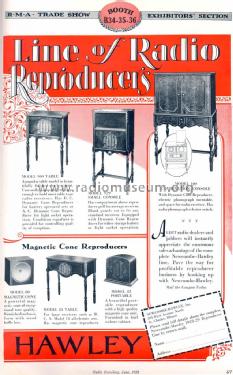

Newcombe-Hawley shows a two paged ad in "Radio Retailing" June 1928 with the Dynamic Cone Reproducers, Magnetic Cone Reproducers and "Air Column Reproducers" (which is an other word for horn type). They also display this model 109 combination console with dynamic cone reproducer, electric phonograph turntable, and space for radio receiver. Has radio-phonograph selector switch. Blank panels cut to fit any standard receiver.
- Literature/Schematics (4)
- Radio Retailing (Radio & Television R.) (June 1928 page 176/177, October 1928 page 6)
- Model page created by Ernst Erb. See "Data change" for further contributors.
