NAV-121 MK II Direction Finder
NEWMAR (Newport Marine Engineering; Inc.); Newport Beach, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- NEWMAR (Newport Marine Engineering; Inc.); Newport Beach, CA
- Year
- 1980 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 314262
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Semiconductors
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; something special ? Please give information (notes)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- Radio with other functions
- Power type and voltage
- Batteries / addl. power jack / C: 8 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 5 inch = 12.7 cm
- Power out
- 0.75 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org
- Model: NAV-121 MK II Direction Finder - NEWMAR Newport Marine
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 11 x 11 x 6 inch / 279 x 279 x 152 mm
- Notes
-

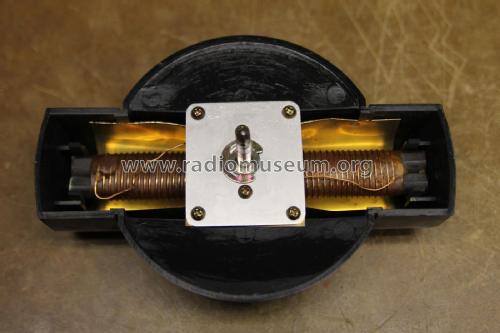

Marine Radio Direction Finder (RDF) receiver covers LW, MW, and tropical SW (1.6 - 3.9 MHz) . AM and LSB reception. Rotatable ferrite bar antenna with compass rose calibrated in degrees.
Made in Japan
- Net weight (2.2 lb = 1 kg)
- 3.8 kg / 8 lb 5.9 oz (8.37 lb)
