• Year
  • 1947–1950
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 12629

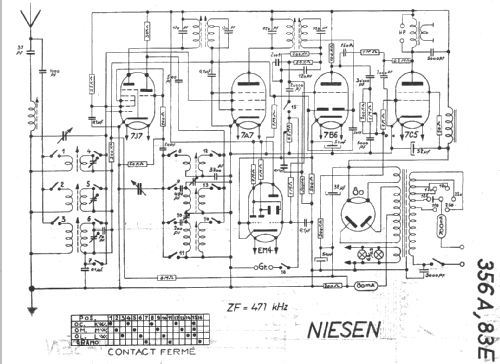

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 471 kHz
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • Presumably Dynamic Loudspeaker (moving coil)
  • from Radiomuseum.org
  • Model: 83E - Niesen, Constructions
  • Notes
  • Ch=356A
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Circuit diagram reference
  • Thali-Schemasammlung und Tungsram-Röhrenbestückung.
