Telefonrundspr. 10 (10T)

Telefonrundspr. 10 ; Niesen, (ID = 18706) Wired-W

Telefonrundspr. 10 ; Niesen, (ID = 18707) Wired-W

Telefonrundspr. 10 ; Niesen, (ID = 18708) Wired-W
Telefonrundspr. 10 ; Niesen, (ID = 2070) Wired-W Telefonrundspr. 10 ; Niesen, (ID = 1624812) Wired-W
Telefonrundspr. 10 ; Niesen, (ID = 1624813) Wired-W Telefonrundspr. 10 ; Niesen, (ID = 1624814) Wired-W
Telefonrundspr. 10 ; Niesen, (ID = 1624815) Wired-W
Use red slider bar for more.

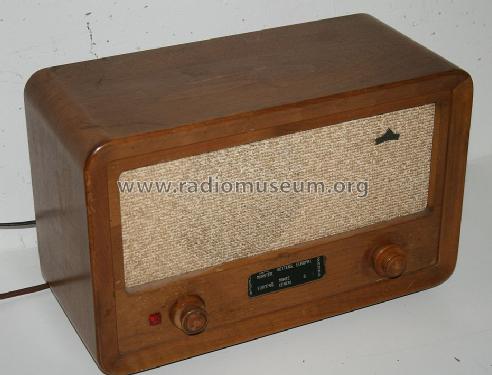

Telefonrundspr. 10 ; Niesen, (ID = 2070) Wired-W
Niesen,: Telefonrundspr. 10 [Wired-W] ID = 2070 700x477
Select picture or schematic to display from thumbnails on the right and click for download.
For model Telefonrundspr. 10 (10T), Niesen, Constructions électriques et mécaniques (CEM); Neuchâtel

Country:  Switzerland
Manufacturer / Brand:  Niesen, Constructions électriques et mécaniques (CEM); Neuchâtel
Year: 1943–1949 ? Category: Wired Receiver (AF only)
Valves / Tubes 3: 7A7 7C5 80
Main principle Audio-Amplification; 2 AF stage(s)
Wave bands - without
Details Wired Wireless Receiver(AF only)
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Telefonrundspr. 10 - Niesen, Constructions
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 445 x 280 x 202 mm / 17.5 x 11 x 8 inch
Notes NF-Telefonrundspruch
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Price in first year of sale 360.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

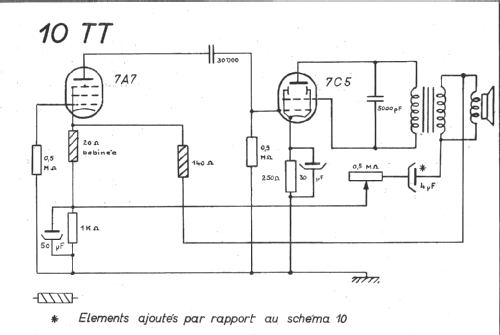

Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Niesen, Constructions électriques et mécaniques (CEM); Neuchâtel
Here you find 79 models, 42 with images and 51 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
