AM/FM Stereo Tuner NT-790

AM/FM Stereo Tuner NT-790; Nikko Electric (ID = 2433243) Radio

AM/FM Stereo Tuner NT-790; Nikko Electric (ID = 2433244) Radio

AM/FM Stereo Tuner NT-790; Nikko Electric (ID = 2433245) Radio
AM/FM Stereo Tuner NT-790; Nikko Electric (ID = 2433232) Radio AM/FM Stereo Tuner NT-790; Nikko Electric (ID = 2433235) Radio
AM/FM Stereo Tuner NT-790; Nikko Electric (ID = 2433234) Radio AM/FM Stereo Tuner NT-790; Nikko Electric (ID = 2433236) Radio
AM/FM Stereo Tuner NT-790; Nikko Electric (ID = 2433230) Radio AM/FM Stereo Tuner NT-790; Nikko Electric (ID = 2433233) Radio

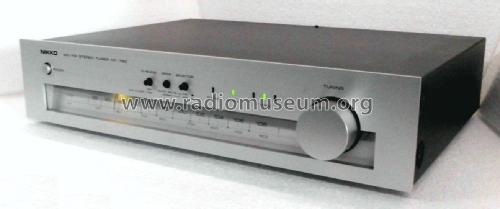

AM/FM Stereo Tuner NT-790; Nikko Electric (ID = 2433331) Radio AM/FM Stereo Tuner NT-790; Nikko Electric (ID = 2513108) Radio
AM/FM Stereo Tuner NT-790; Nikko Electric (ID = 2513109) Radio AM/FM Stereo Tuner NT-790; Nikko Electric (ID = 2513110) Radio
Use red slider bar for more.
AM/FM Stereo Tuner NT-790; Nikko Electric (ID = 2433232) Radio
Nikko Electric: AM/FM Stereo Tuner NT-790 [Radio] ID = 2433232 1400x547
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM/FM Stereo Tuner NT-790, Nikko Electric Manufacturing Co., Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Nikko Electric Manufacturing Co., Ltd.; Tokyo
Year: 1980/1981 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 21: 2SK61 2SC1342 2SC461 2SC1675 LA1231 2SC945 2SK104 µPC1161C 2SA733 2SD880
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 120 or 220-240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: AM/FM Stereo Tuner NT-790 - Nikko Electric Manufacturing
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 420 x 96 x 325 mm / 16.5 x 3.8 x 12.8 inch
Notes

Specifications

Type: Mono/Stereo Tuner
Tuning Scale: Analogue
FM Tuning Range: 88 to 109 MHz
MW Tuning Range: 530 to 1600 kHz
Sensitivity: 2.0µV (FM), 20µV (MW)
Signal to Noise Ratio: 70dB (FM), 50dB (MW)
Distortion: 0.15% (FM)
Selectivity: 55dB (FM)

Each transistor type listed once only.

Versions and safety regulations:

  • W type 60Hz, 120V, UL and CSA
  • E type 50Hz, 220/240V, NK-STD
  • N type 50Hz, 220/240V, DEMKO, SEMKO
  • D type 50Hz, 220/240V, DIN
Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)
Mentioned in -- Original prospect or advert (Nikko Katalog 81/82 (Deutschland))

Model page created by Ralf Rehbein. See "Data change" for further contributors.
