Graphic Equalizer EQ-I

Graphic Equalizer EQ-I; Nikko Electric (ID = 1781803) Ampl/Mixer

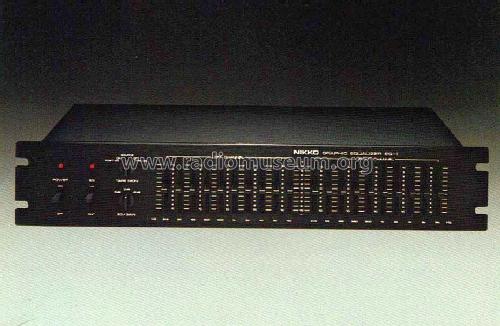

Graphic Equalizer EQ-I; Nikko Electric (ID = 1781727) Ampl/Mixer Graphic Equalizer EQ-I; Nikko Electric (ID = 1781720) Ampl/Mixer
Graphic Equalizer EQ-I; Nikko Electric (ID = 1781723) Ampl/Mixer Graphic Equalizer EQ-I; Nikko Electric (ID = 1781725) Ampl/Mixer
Graphic Equalizer EQ-I; Nikko Electric (ID = 1781802) Ampl/Mixer
Use red slider bar for more.
Graphic Equalizer EQ-I; Nikko Electric (ID = 1781727) Ampl/Mixer
Nikko Electric: Graphic Equalizer EQ-I [Ampl/Mixer] ID = 1781727 1400x343
Select picture or schematic to display from thumbnails on the right and click for download.
For model Graphic Equalizer EQ-I, Nikko Electric Manufacturing Co., Ltd.; Tokyo:
Sales Brochure

Country:  Japan
Manufacturer / Brand:  Nikko Electric Manufacturing Co., Ltd.; Tokyo
Year: 1980 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Graphic Equalizer EQ-I - Nikko Electric Manufacturing
Material Metal case
Shape Rack
Dimensions (WHD) 482 x 92 x 231 mm / 19 x 3.6 x 9.1 inch
Notes

Nikko Stereo Graphic Equalizer Model EQ-I.
Frequency Bands (2x 10): 31.5, 63, 125, 250, 500, 1K, 2K, 4K, 8K, 16KHz
Frequency response: 10 to 50000Hz
Signal to Noise Ratio: 100dB
Total harmonic distortion: 0.007%
Control Range: ± 12dB
Available in Silver and in Black.

Power supply:

  • W-type: 120 V AC
  • E-, N- and D-type: 220/240 V AC.
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Mentioned in -- Original prospect or advert (Nikko Katalog 1980)

Model page created by Franz Scharner. See "Data change" for further contributors.
