• Country
• Japan

• Manufacturer / Brand
• Nikko Electric Manufacturing Co., Ltd.; Tokyo

• Year
• 1984–1986 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 356397

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• 2SC1675 2SC945 µPC1018 LA3361 LA3220 LM324 TDA2030 BD233

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 5 AM circuit(s)     6 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 36 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

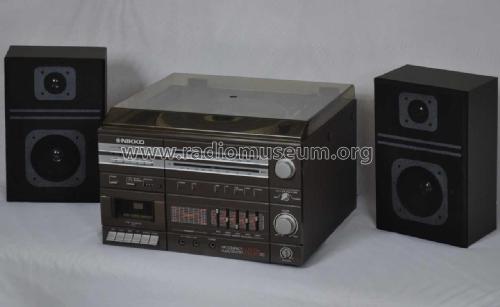

• Model: Hi-Fi Compact Audio Center NHS-60 - Nikko Electric Manufacturing

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 420 x 240 x 380 mm / 16.5 x 9.4 x 15 inch

• Notes

• Das Nikko Hi-Fi Compact Audio Center NHS-60 ist eine Kombination bestehend aus Empfänger/Tuner, Verstärker mit 5-Band Graphic Equalizer, Cassettendeck und Plattenspieler.

  Anschlüsse für Mikrofon und Kopfhörer an der Frontseite.
  Jeder Transistor- und IC-Typ ist jeweils einmal gelistet.
  Der FM-ZF-Verstärker enthält zusätzlich 2 Keramikfilter zur Selektion.

  Max. Leistungsaufnahme 40 W

  Made in Taiwan

• Net weight (2.2 lb = 1 kg)
• 6.8 kg / 14 lb 15.6 oz (14.978 lb)

• Price in first year of sale
• 239.00 DM

• Author
• Model page created by Sascha Galster. See "Data change" for further contributors.
