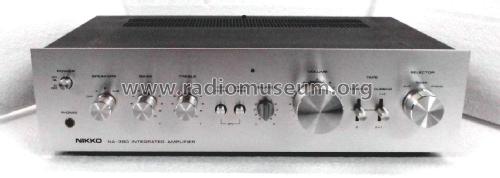

Integrated Stereo Amplifier NA-390

Integrated Stereo Amplifier NA-390; Nikko Electric (ID = 2492414) Ampl/Mixer Integrated Stereo Amplifier NA-390; Nikko Electric (ID = 2492416) Ampl/Mixer
Integrated Stereo Amplifier NA-390; Nikko Electric (ID = 2492417) Ampl/Mixer Integrated Stereo Amplifier NA-390; Nikko Electric (ID = 2492415) Ampl/Mixer
Use red slider bar for more.
Integrated Stereo Amplifier NA-390; Nikko Electric (ID = 2492414) Ampl/Mixer
Nikko Electric: Integrated Stereo Amplifier NA-390 [Ampl/Mixer] ID = 2492414 1289x617
Select picture or schematic to display from thumbnails on the right and click for download.
For model Integrated Stereo Amplifier NA-390, Nikko Electric Manufacturing Co., Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Nikko Electric Manufacturing Co., Ltd.; Tokyo
Year: 1979/1980 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 70 W (100 W max.)
from Radiomuseum.org Model: Integrated Stereo Amplifier NA-390 - Nikko Electric Manufacturing
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 400 x 117 x 260 mm / 15.7 x 4.6 x 10.2 inch
Notes

Nikko NA 390

Stereo-Vollverstärker mit Loudnessschalter, Rauschfilter, Lautsprecher Gruppenschalter, Überspielmöglichkeit von Band zu Band in beide Richtungen (Tape Dubbing), Höhenregler, Tiefenregler, 41-stufiger Lautstärkeregler, Ausgangsleistung:

  • 2 x 35 Watt Sinusleistung an 4 Ω
  • 2 x 50 Watt Musikleistung an 4 Ω
  • Leistungsbandbreite 5 bis 40.000 Hz
  • KIirrfaktor 0,056%

Anschlüsse

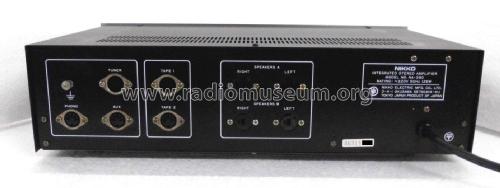

Phono Magnet, Tuner, Reserve, zwei Tonbandgeräte, zwei Lautsprecherpaare, Kopfhöreranschluß (vorn).

Frontblende in gebürstetem Aluminium

Net weight (2.2 lb = 1 kg) 6.4 kg / 14 lb 1.6 oz (14.097 lb)
Mentioned in -- Original prospect or advert (Beschreibung Startanlage Nikko 390)

Model page created by Franz Scharner. See "Data change" for further contributors.
