Integrated Stereo Amplifier NA-550

Integrated Stereo Amplifier NA-550; Nikko Electric (ID = 2521271) Ampl/Mixer
Use red slider bar for more.
Integrated Stereo Amplifier NA-550; Nikko Electric (ID = 2521271) Ampl/Mixer

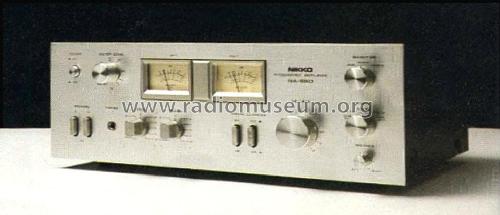

Nikko Electric: Integrated Stereo Amplifier NA-550 [Ampl/Mixer] ID = 2521271 977x422
Select picture or schematic to display from thumbnails on the right and click for download.
For model Integrated Stereo Amplifier NA-550, Nikko Electric Manufacturing Co., Ltd.; Tokyo:
Nikko Katalog 1978 (US)

Country:  Japan
Manufacturer / Brand:  Nikko Electric Manufacturing Co., Ltd.; Tokyo
Year: 1977/1978 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 90 W (undistorted)
from Radiomuseum.org Model: Integrated Stereo Amplifier NA-550 - Nikko Electric Manufacturing
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 400 x 146 x 311 mm / 15.7 x 5.7 x 12.2 inch
Notes

Nikko NA-550

Neuvorstellung 1977 (US Markt)

Stereo-Vollverstärker mit zwei Leistungsanzeigeinstrumenten (regelbar), Loudnessschalter, Rauschfilter, Lautsprecher Gruppenschalter, Überspielmöglichkeit von Band zu Band (Tape Dubbing), Höhenregler, Tiefenregler, Balanceregler, Ausgangsleistung:

  • 2 x 45 Watt Dauerleistung RMS 20 - 20.000 Hz an 8 Ω (beide Kanäle gleichzeitig)
  • 2 x 50 Watt Dauerleistung RMS 20 - 20.000 Hz an 8 Ω (pro Kanal)
  • KIirrfaktor 0,08 %

Anschlüsse
Phono Magnet, Tuner, zwei Tonbandgeräte, zwei Lautsprecherpaare, Kopfhöreranschluß (vorn).

Frontblende in gebürstetem Aluminium

Ausführungen:

  • W type 60Hz, 120V, UL and CSA
  • E type 50Hz, 100, 120, 220, 240V, NK-STD
  • N type 50Hz, 220/240V, DEMKO, SEMKO

Empfohlener Tuner: Nikko NT-550

Net weight (2.2 lb = 1 kg) 8.2 kg / 18 lb 1 oz (18.062 lb)
Mentioned in -- Original prospect or advert (Katalog 1978 US, US Inserat 1977, Serviceanleitung)

Model page created by Michael Lienhop. See "Data change" for further contributors.
