Integrated Stereo Amplifier TRM-210 D

Integrated Stereo Amplifier TRM-210 D; Nikko Electric (ID = 1683737) Ampl/Mixer Integrated Stereo Amplifier TRM-210 D; Nikko Electric (ID = 1660642) Ampl/Mixer
Integrated Stereo Amplifier TRM-210 D; Nikko Electric (ID = 1660643) Ampl/Mixer Integrated Stereo Amplifier TRM-210 D; Nikko Electric (ID = 1660644) Ampl/Mixer
Integrated Stereo Amplifier TRM-210 D; Nikko Electric (ID = 1660645) Ampl/Mixer Integrated Stereo Amplifier TRM-210 D; Nikko Electric (ID = 1660646) Ampl/Mixer
Integrated Stereo Amplifier TRM-210 D; Nikko Electric (ID = 1660647) Ampl/Mixer Integrated Stereo Amplifier TRM-210 D; Nikko Electric (ID = 1660648) Ampl/Mixer
Integrated Stereo Amplifier TRM-210 D; Nikko Electric (ID = 1660649) Ampl/Mixer Integrated Stereo Amplifier TRM-210 D; Nikko Electric (ID = 1660650) Ampl/Mixer
Use red slider bar for more.

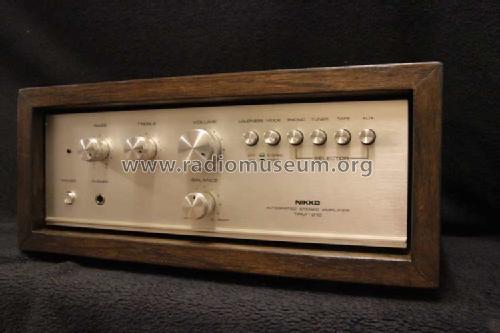

Integrated Stereo Amplifier TRM-210 D; Nikko Electric (ID = 1683737) Ampl/Mixer
Nikko Electric: Integrated Stereo Amplifier TRM-210 D [Ampl/Mixer] ID = 1683737 750x500
Select picture or schematic to display from thumbnails on the right and click for download.
For model Integrated Stereo Amplifier TRM-210 D, Nikko Electric Manufacturing Co., Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Nikko Electric Manufacturing Co., Ltd.; Tokyo
Year: 1974/1975 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 18:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 24 W (undistorted)
from Radiomuseum.org Model: Integrated Stereo Amplifier TRM-210 D - Nikko Electric Manufacturing
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 320 x 115 x 240 mm / 12.6 x 4.5 x 9.4 inch
Notes

Nikko TRM-210 D

Das "D" in der Typenbezeichnung deutet auf die Ausstattung mit DIN - Anschlußbuchsen hin. International war das Gerät auch mit Chinch Anschlüssen erhältlich.

Ausgangsleistung:

  • 2 x 12 Watt Dauerleistung bei 1.000 Hz an 8 Ω
  • 2 x 10 Watt Dauerleistung nach RMS (40 - 20.000 Hz) an 8 Ω
  • 2 x   8 Watt Dauerleistung nach RMS (20 - 20.000 Hz) an 8 Ω

Gemessen bei max. 1,0 % Klirrgrad.

Gehäuseausführung: Boden, Front und Heck aus Metall, Holzdeckel mit festen Seitenteilen in Holzdekor foliert. Die Drucktasten des Gerätes wurden in "schwarz" oder "silbefarben" hergestellt.

Der passende Tuner ist der Nikko FAM-220

Net weight (2.2 lb = 1 kg) 4.2 kg / 9 lb 4 oz (9.251 lb)
Mentioned in -- Original prospect or advert (Nikko Prospektblatt TRM-210 und US Katalog 1975)

Model page created by Bartosz Szwed. See "Data change" for further contributors.
