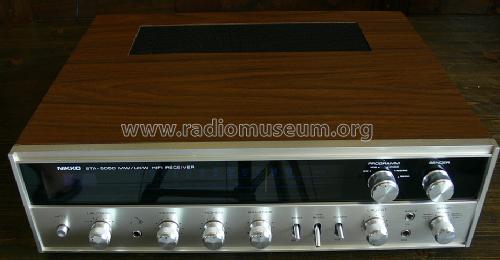

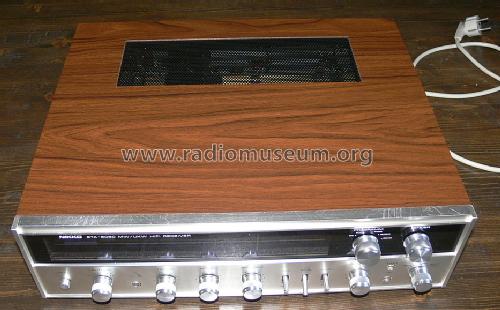

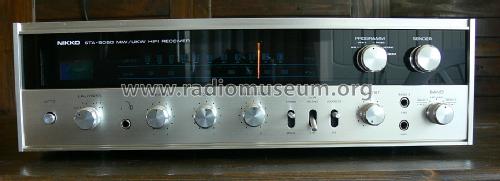

MW/UKW HiFi Receiver STA-5050

MW/UKW HiFi Receiver STA-5050; Nikko Electric (ID = 2426288) Radio MW/UKW HiFi Receiver STA-5050; Nikko Electric (ID = 2426292) Radio
MW/UKW HiFi Receiver STA-5050; Nikko Electric (ID = 2426289) Radio MW/UKW HiFi Receiver STA-5050; Nikko Electric (ID = 2426290) Radio
MW/UKW HiFi Receiver STA-5050; Nikko Electric (ID = 2426291) Radio MW/UKW HiFi Receiver STA-5050; Nikko Electric (ID = 1526883) Radio
MW/UKW HiFi Receiver STA-5050; Nikko Electric (ID = 1526884) Radio MW/UKW HiFi Receiver STA-5050; Nikko Electric (ID = 1526885) Radio
MW/UKW HiFi Receiver STA-5050; Nikko Electric (ID = 1526886) Radio MW/UKW HiFi Receiver STA-5050; Nikko Electric (ID = 1526887) Radio
Use red slider bar for more.
MW/UKW HiFi Receiver STA-5050; Nikko Electric (ID = 2426288) Radio
Nikko Electric: MW/UKW HiFi Receiver STA-5050 [Radio] ID = 2426288 1399x653
Select picture or schematic to display from thumbnails on the right and click for download.
For model MW/UKW HiFi Receiver STA-5050, Nikko Electric Manufacturing Co., Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Nikko Electric Manufacturing Co., Ltd.; Tokyo
Year: 1975/1976 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 60 W (100 W max.)
from Radiomuseum.org Model: MW/UKW HiFi Receiver STA-5050 - Nikko Electric Manufacturing
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 450 x 135 x 390 mm / 17.7 x 5.3 x 15.4 inch
Notes

Nikko STA-5050

UKW / MW HiFi Receiver, Empfindlichkeit: UKW 2,0 µV (26 dB Mono) UKW Quadro Ausgang, 2-Kanal-4-Kanal Umschaltung, Anschlüsse: Phono, Reserve, Band, Lautsprecher zwei Paare anschliessbar, schalbar A, B, A+B, 2-Kanal Ausgang, 4-Kanal Eingang
Leistungsaufnahme bis 130 Watt, Sicherungsautomaten für Endstufen und Netz, Frequenzgang 20 - 30.000 Hz ± 2 dB, Klirrfaktor bei 0,8 PA 0,2 %, Ausgangsleistung:

  • 2 x 30 Watt Sinusleistung DIN (1.000 Hz) an 4 Ω
  • 2 x 50 Watt Musikleistung an 4Ω
  • 2 x 24 Watt Dauerleistung RMS (40 - 20.000 Hz) an 4 Ω
  • 2 x 18 Watt Dauerleistung RMS (40 - 20.000 Hz) an 8 Ω @ 0,8 % THD

Nur die ab 1975 für den deutschen Markt angebotenen Geräte verfügen über deutsche Beschriftung und Anschlüsse nach DIN. Werbung "Nikko ein Japaner für Deutschland". Der deutsche  Importeur Transonic Intermarket (Hamburg) ließ die Geräte, insbesondere den Tunerteil, den oft schwierigen, deutschen Empfangsverhältnissen anpassen.

Verkaufspreis 1976 ca DM 870,- (HiFi Jahrbuch 8, 1976)

Made in Japan.

Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)

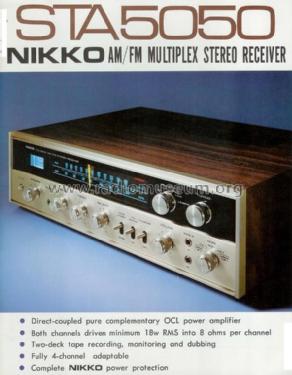

Mentioned in -- Original prospect or advert (Katalog 1975 US, HiFi Jahrbuch 6 -1976)
Literature/Schematics (1) Funk-Technik (FT) (11/1975, S. 333 / Neuvorstellung)

Model page created by Franz Scharner. See "Data change" for further contributors.
