AM/FM Stereo Receiver NR-719

AM/FM Stereo Receiver NR-719; Nikko Electric (ID = 1523311) Radio AM/FM Stereo Receiver NR-719; Nikko Electric (ID = 1523312) Radio
AM/FM Stereo Receiver NR-719; Nikko Electric (ID = 1523313) Radio AM/FM Stereo Receiver NR-719; Nikko Electric (ID = 1523314) Radio
AM/FM Stereo Receiver NR-719; Nikko Electric (ID = 1523315) Radio AM/FM Stereo Receiver NR-719; Nikko Electric (ID = 1523316) Radio
AM/FM Stereo Receiver NR-719; Nikko Electric (ID = 1523317) Radio AM/FM Stereo Receiver NR-719; Nikko Electric (ID = 1523318) Radio
AM/FM Stereo Receiver NR-719; Nikko Electric (ID = 1523320) Radio
Use red slider bar for more.

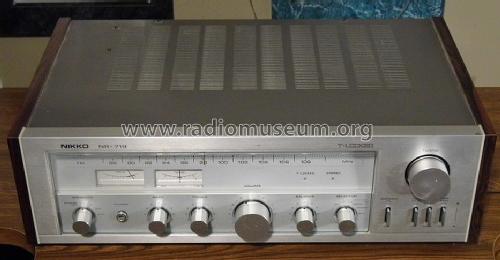

AM/FM Stereo Receiver NR-719; Nikko Electric (ID = 1523311) Radio
Nikko Electric: AM/FM Stereo Receiver NR-719 [Radio] ID = 1523311 933x486
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM/FM Stereo Receiver NR-719, Nikko Electric Manufacturing Co., Ltd.; Tokyo:
By Courtesy Of EBAY User: pickspicks1

Country:  Japan
Manufacturer / Brand:  Nikko Electric Manufacturing Co., Ltd.; Tokyo
Year: 1979/1980 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 94 W (undistorted)
from Radiomuseum.org Model: AM/FM Stereo Receiver NR-719 - Nikko Electric Manufacturing
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 504 x 158 x 324 mm / 19.8 x 6.2 x 12.8 inch
Notes

Nikko NR-719

AM/FM Stereo Receiver, nutzbare UKW Eingangsempfindlichkeit 1,8 µV (IHF)
Signal- und Tuning-Meter, Tiefen- und Höhen-Regler, Loudness.
Eingänge Phono, Reserve (AUX), Band; 75 und 300 Ohm UKW-Antenne, 2 LS-Gruppen.
Seitenpaneele (Wangen) Mahagoni.

Dauer - Ausgangsleistung:

  • 2 x 45 Watt RMS 20 - 20.000 Hz, into 4 Ω, @ 0,1% THD
  • 2 x 47 Watt 1.000 Hz, into 4 Ω, @ 0,1% THD
  • 2 x 35 Watt RMS 20 - 20.000 Hz, into 8 Ω, @ 0,05 % THD

Design: Front Silver.

Leistungsaufnahme bis zu 190 Watt

Hergestellte Versionen:

  • W type 60Hz, 120V, UL and CSA type
  • E  type 50Hz, 220V/240, NK-STD type
  • N  type 50Hz, 220/240V, DEMKO and SEMKO type
  • D  type 50Hz, 220/240V, DIN type
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Mentioned in -- Original-techn. papers. (Servicemanual 05.1979)
Literature/Schematics (1) -- Original prospect or advert (Katalog 1980 US)

Model page created by Franz Scharner. See "Data change" for further contributors.
