Modular AM / FM Multiplex Stereo Receiver STA-1101D

Modular AM / FM Multiplex Stereo Receiver STA-1101D; Nikko Electric (ID = 2395228) Radio Modular AM / FM Multiplex Stereo Receiver STA-1101D; Nikko Electric (ID = 2395229) Radio
Modular AM / FM Multiplex Stereo Receiver STA-1101D; Nikko Electric (ID = 2395230) Radio Modular AM / FM Multiplex Stereo Receiver STA-1101D; Nikko Electric (ID = 571529) Radio
Modular AM / FM Multiplex Stereo Receiver STA-1101D; Nikko Electric (ID = 572092) Radio
Use red slider bar for more.
Modular AM / FM Multiplex Stereo Receiver STA-1101D; Nikko Electric (ID = 2395228) Radio
Nikko Electric: Modular AM / FM Multiplex Stereo Receiver STA-1101D [Radio] ID = 2395228 1200x441
Select picture or schematic to display from thumbnails on the right and click for download.
For model Modular AM / FM Multiplex Stereo Receiver STA-1101D, Nikko Electric Manufacturing Co., Ltd.; Tokyo:
Q: Nikko, Katalog 1971

Country:  Japan
Manufacturer / Brand:  Nikko Electric Manufacturing Co., Ltd.; Tokyo
Year: 1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 31:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 120; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 200 W (unknown quality)
from Radiomuseum.org Model: Modular AM / FM Multiplex Stereo Receiver STA-1101D - Nikko Electric Manufacturing
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 470 x 160 x 370 mm / 18.5 x 6.3 x 14.6 inch
Notes ICs: 12
AM/FM-Stereo-Receiver mit 200 Watt Ausgangsleistung.
Trennung von Vor- und Endstufe möglich. 2 Aussteuerungselemente für die Endstufen, Doppelbuchsen für 2 Kopfhörer bei separater Regelung, parallele Tonbandausgänge an Front- und Rückseite.
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)

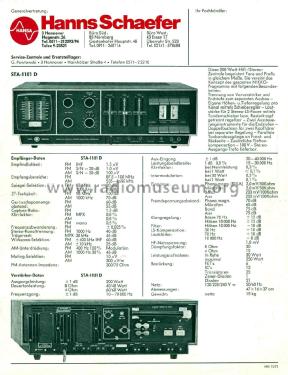

Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
