- Country
- Japan
- Manufacturer / Brand
- Nikko Electric Manufacturing Co., Ltd.; Tokyo
- Year
- 1970 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 324878

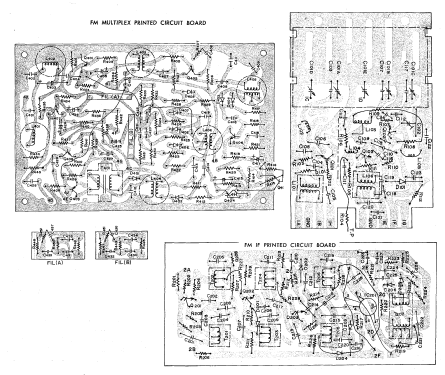

From service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Tuned circuits
- 5 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 50 to 60 Hz, 120 or 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 50 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org
- Model: STA-701-B - Nikko Electric Manufacturing
- Shape
- Book-shelf unit.
- Notes
-
Nikko model STA-701-B AM/FM stereo receiver.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (1972 Component Stereo #9)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
