• Country
• United States of America (USA)

• Manufacturer / Brand
• Nobility (New York Merchandise Co.); New York, NY

• Year
• 1966 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 356101

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm

• Power out
• 0.15 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

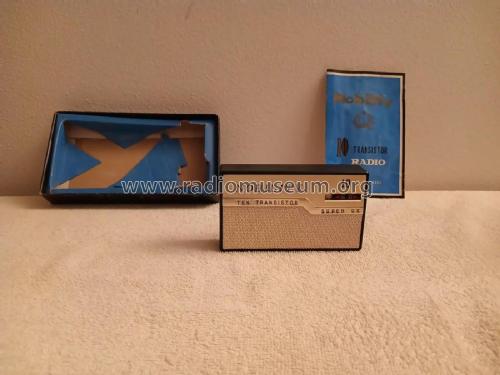

• Model: 10 Ten Transistor Super DX E 1052 - Nobility New York Merchandise

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 5.5 x 3.25 x 1.25 inch / 140 x 83 x 32 mm

• Notes

• Similar to model 1051.

  Made in Hong Kong

• Net weight (2.2 lb = 1 kg)
• 0.532 lb (0 lb 8.5 oz) / 0.242 kg

• Author
• Model page created by Aldo Andreani. See "Data change" for further contributors.
