Mediamaster 9500S

Mediamaster 9500S; Nokia, Salo (ID = 1633442) DIG/SAT Mediamaster 9500S; Nokia, Salo (ID = 1632705) DIG/SAT
Mediamaster 9500S; Nokia, Salo (ID = 1633437) DIG/SAT Mediamaster 9500S; Nokia, Salo (ID = 1633438) DIG/SAT
Mediamaster 9500S; Nokia, Salo (ID = 1633439) DIG/SAT Mediamaster 9500S; Nokia, Salo (ID = 1633440) DIG/SAT
Mediamaster 9500S; Nokia, Salo (ID = 1633441) DIG/SAT Mediamaster 9500S; Nokia, Salo (ID = 1633443) DIG/SAT
Mediamaster 9500S; Nokia, Salo (ID = 1633444) DIG/SAT Mediamaster 9500S; Nokia, Salo (ID = 1633445) DIG/SAT
Use red slider bar for more.
Mediamaster 9500S; Nokia, Salo (ID = 1633442) DIG/SAT

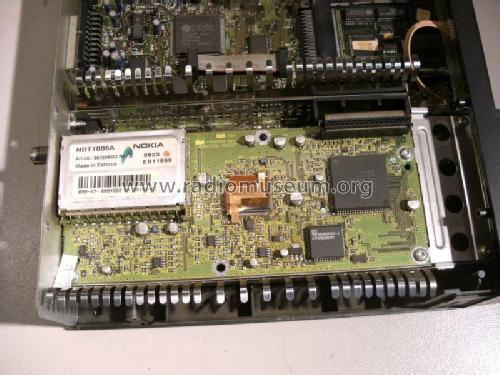

Nokia, Salo: Mediamaster 9500S [DIG/SAT] ID = 1633442 800x391
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mediamaster 9500S, Nokia, Salo

Country:  Finland
Manufacturer / Brand:  Nokia, Salo
Year: 1991 ? Category: Digital terrestrial, Internet and SAT receiver (also analogue)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands SAT-IF
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Mediamaster 9500S - Nokia, Salo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 380 x 62 x 240 mm / 15 x 2.4 x 9.4 inch
Notes

NOKIA Mediamaster 9500S - Dati tecnici

Capacità del sistema
Pienamente compatibile secondo lo standard DVB.

Demodulatore
Sistema: QPSK
Symbol rate: 1-45 MS/s
Larghezza di banda: 2-54 MHz

Decodificatore video
MPEG-2 Main Profile @ Main Profile
Formati di video:  4:3, 16:9, 20:9
Data rates: fino a 15 Mbite/s
Pan & Scan, Letterbox
Figure in formato non completo

Decodificatore audio
MPEG-2 I & II (Musicam Audio)
Mono, Doppio audio, Stereo, Joint Stereo

Formati CD
CD-DA, CD-ROM-XA, Video CD

Risorse per applicativi del sistema
Processore: Motorola 68340  16 MHz
Memoria RAM: 1 Mbyte, 512 kbytes estensione
Memoria Flash: 1 Mbyte
Grafiche Display: 720x576
Ingresso LNB/Tuner
Connettore: 1, tipo F
Frequenza d'ingresso: 950-2150 MHz

Scart TV
RGB, CVBS, Audio

Scart VCR
CVBS, Audio

Scart Decoder/SAT
RGB, CVBS, Audio

Uscita audio hi-fi
Connettore:2 x RCA/Cinch Sinistra/Destra

Uscita di controllo
Tensione: 0/12 V.
Connettore: 1 x RCA/Cinch

Controllo VCR
Connettore: 1 x RCA/Cinch

Canale di ritorno
Modem incorporato per servizi interattivi
e trasmissioni Pay Per View
Connettore spinotto    modulare 6-pin
Protocollo:  V22bis, 2400 bps
Interfaccia dati
Via porta seriale: RS232
Interfaccia massimo 19,2 kbaud

Interfaccia dati alta velocità
Via connettore: 50-pin SCSI-2

Accesso condizionato
Slot PCMCIA, norma DVB
Standard Irdeto

Telecomando
Codice IR: NRC17
Batterie:  2 x 1.5 V (tipo AAA)

Dati generali
Colore:  Nero
Temperatura di lavoro: +5°C fino a +40°C
Temperatura stoccaggio: -40°C fino a +65°C
Corrente elettrica: 230 VAC ±15% 50+60 Hz
Consumo    Massimo 40W
                   In Stand by 5W

Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)
Price in first year of sale 1'800'000.00 Lire

Model page created by Giuseppe Tedesco. See "Data change" for further contributors.
