Form B3 Bakelit

Form B3; Nora; Berlin (ID = 2064231) Radio
Form B3; Nora; Berlin (ID = 1381322) Radio Form B3; Nora; Berlin (ID = 6306) Radio

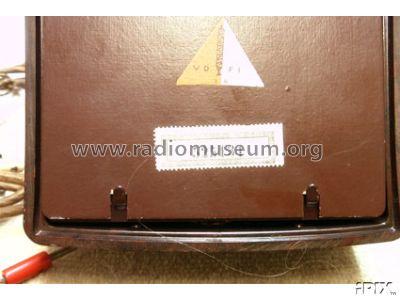

Form B3; Nora; Berlin (ID = 6307) Radio Form B3; Nora; Berlin (ID = 6308) Radio
Form B3; Nora; Berlin (ID = 6309) Radio Form B3; Nora; Berlin (ID = 36377) Radio
Form B3; Nora; Berlin (ID = 36416) Radio Form B3; Nora; Berlin (ID = 36417) Radio
Form B3; Nora; Berlin (ID = 120714) Radio Form B3; Nora; Berlin (ID = 120716) Radio
Use red slider bar for more.
Form B3; Nora; Berlin (ID = 1381322) Radio
Nora; Berlin: Form B3 [Radio] ID = 1381322 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Form B3 Bakelit, Nora; Berlin

Country:  Germany
Manufacturer / Brand:  Nora; Berlin
Year: 1930–1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: RE034 RE034 RE114
Main principle TRF with regeneration; 2 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Form B3 [Bakelit] - Nora; Berlin
Material Bakelite case
Dimensions (WHD) 150 x 60 x 150 mm / 5.9 x 2.4 x 5.9 inch
Notes Alternative Röhrenbestückung: W406, W406, L410
Net weight (2.2 lb = 1 kg) 0.9 kg / 1 lb 15.7 oz (1.982 lb)
Price in first year of sale 45.00 RM
Source of data Katalog Radio-Zentrale Prohaska 1930/31 (dick) / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Röhren in FS-Bestückungstabellen
Mentioned in Preisl.Radio Selektra 1934
Literature/Schematics (1) Funkversand Kredit 1932/33
