G200L

G200L; Nora; Berlin (ID = 36174) Radio

G200L; Nora; Berlin (ID = 36175) Radio

G200L; Nora; Berlin (ID = 4327) Radio
G200L; Nora; Berlin (ID = 27689) Radio G200L; Nora; Berlin (ID = 27690) Radio
G200L; Nora; Berlin (ID = 2223623) Radio G200L; Nora; Berlin (ID = 2223625) Radio
G200L; Nora; Berlin (ID = 2223624) Radio G200L; Nora; Berlin (ID = 708266) Radio
G200L; Nora; Berlin (ID = 974108) Radio G200L; Nora; Berlin (ID = 166984) Radio
Use red slider bar for more.
G200L; Nora; Berlin (ID = 27689) Radio
Nora; Berlin: G200L [Radio] ID = 27689 567x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model G200L, Nora; Berlin

Country:  Germany
Manufacturer / Brand:  Nora; Berlin
Year: 1933–1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2: RENS1884 RENS1823d
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details

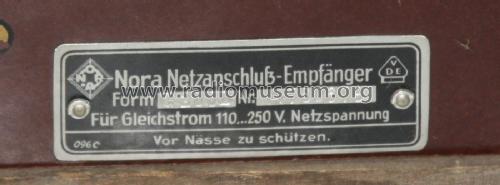

Power type and voltage Direct Current supply (DC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 2 W (unknown quality)
from Radiomuseum.org Model: G200L - Nora; Berlin
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 325 x 405 x 160 mm / 12.8 x 15.9 x 6.3 inch
Notes 1934:auch Pressgehäuse
Price in first year of sale 155.00 RM !
Source of data Radio-Zentrale Prohaska 1933/34 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Handbuch der Funktechnik und ihrer Grenzgebiete Bände 1 bis 12
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
