G30

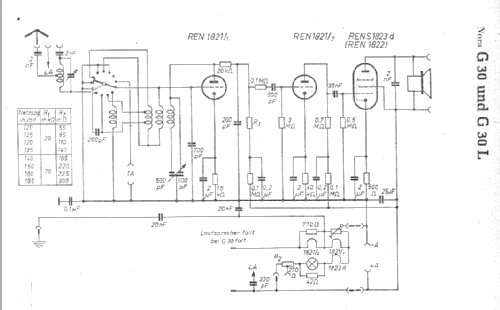

G30; Nora; Berlin (ID = 4333) Radio
G30; Nora; Berlin (ID = 480295) Radio G30; Nora; Berlin (ID = 480300) Radio

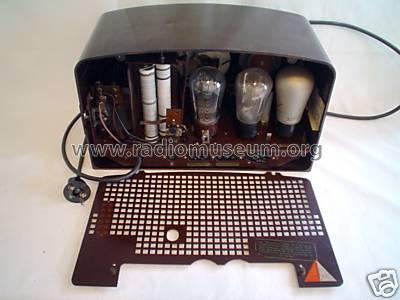

G30; Nora; Berlin (ID = 480298) Radio G30; Nora; Berlin (ID = 468899) Radio
G30; Nora; Berlin (ID = 480296) Radio G30; Nora; Berlin (ID = 974110) Radio
Use red slider bar for more.

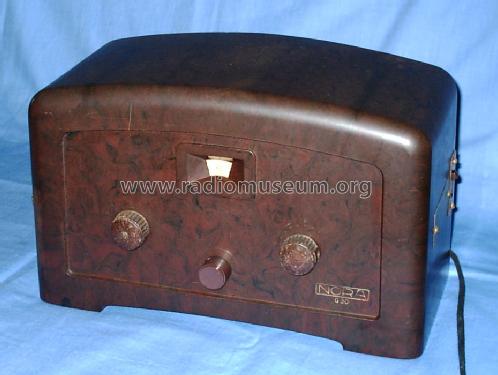

G30; Nora; Berlin (ID = 480295) Radio
Nora; Berlin: G30 [Radio] ID = 480295 931x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model G30, Nora; Berlin

Country:  Germany
Manufacturer / Brand:  Nora; Berlin
Year: 1931–1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: REN1821 REN1821 REN1822 or RENS1823d
Main principle TRF with regeneration; 2 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Direct Current supply (DC) / 110-250 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: G30 - Nora; Berlin
Material Bakelite case
Dimensions (WHD) 400 x 255 x 245 mm / 15.7 x 10 x 9.6 inch
Notes div.Masse? [501]
Price in first year of sale 105.00 RM +
Source of data Katalog Radio-Zentrale Prohaska 1931/32 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + FS-Bestückungstabellen
Mentioned in Radio-Zentrale Prohaska 1933/34
