G3 110V

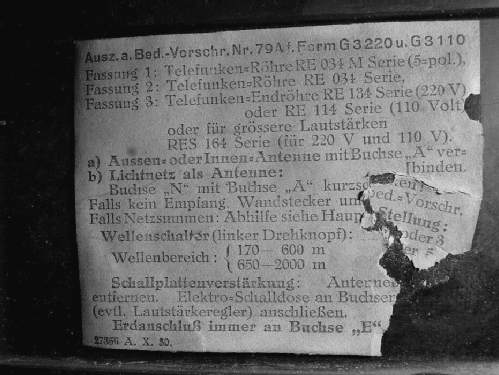

G3; Nora; Berlin (ID = 49666) Radio
G3; Nora; Berlin (ID = 49668) Radio
Use red slider bar for more.

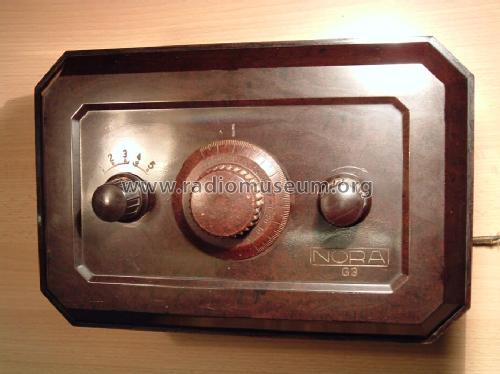

G3; Nora; Berlin (ID = 49668) Radio
Nora; Berlin: G3 [Radio] ID = 49668 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model G3 110V, Nora; Berlin:
110/220V : Steckbrücken, Widerstände, Röhren

Country:  Germany
Manufacturer / Brand:  Nora; Berlin
Year: 1930–1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: RE034Ms RE034s RE114s or RES164s
Main principle TRF with regeneration; 2 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Direct Current supply (DC) / 110 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: G3 [110V] - Nora; Berlin
Material Bakelite case
Dimensions (WHD) 255 x 170 x 145 mm / 10 x 6.7 x 5.7 inch
Notes abgeschr.Ecken [501]
Price in first year of sale 95.00 RM +
Source of data Katalog Radio-Zentrale Prohaska 1930/31 (dick) / Radiokatalog Band 1, Ernst Erb
Mentioned in Katalog Radio-Zentrale Prohaska 1931/32
