Kraftverstärker K3WVb (m.Skalenknopf) Gl.= RGN2004;Entlüftung rund

Nora; Berlin

  • Year
  • 1930–1933
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 226951

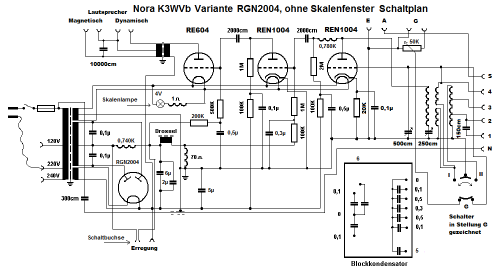

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • TRF with regeneration; 2 AF stage(s)
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Kraftverstärker K3WVb [Gl.= RGN2004;Entlüftung rund] - Nora; Berlin
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 400 x 220 x 240 mm / 15.7 x 8.7 x 9.4 inch
  • Net weight (2.2 lb = 1 kg)
  • 10.2 kg / 22 lb 7.5 oz (22.467 lb)
  • Price in first year of sale
  • 120.00 RM
  • Author
  • Model page created by Jörg Seidel. See "Data change" for further contributors.
