Netzanschluss-Empfänger PN1H

• Country
• Germany

• Manufacturer / Brand
• Nora, Aron, Heliowatt; Berlin

• Year
• 1928/1929

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3777

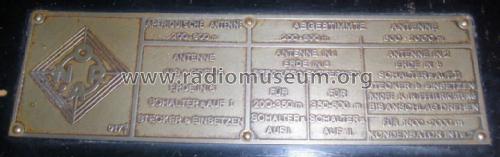

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• REN1104 REN1104 RGN1503 or R22

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org
• Model: Netzanschluss-Empfänger PN1H - Nora, Aron, Heliowatt; Berlin

• Shape
• Tablemodel, slant panel.

• Dimensions (WHD)
• 310 x 190 x 250 mm / 12.2 x 7.5 x 9.8 inch

• Notes
• 1. Netzanschluss-Empfänger; Flachpult; Netzantenne! [514,560]

• Net weight (2.2 lb = 1 kg)
• 5.4 kg / 11 lb 14.3 oz (11.894 lb)

• Price in first year of sale
• 145.00 RM +

• Source of data
• Katalog Radio-Zentrale Prohaska 1928 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Röhren in FS-Bestückungstabellen

• Mentioned in
• Radio-Diehr, Berlin, 1928/1929 (!)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
