Sperrkreis UKd

Sperrkreis UKd; Nora; Berlin (ID = 1406336) mod-past25 Sperrkreis UKd; Nora; Berlin (ID = 1406337) mod-past25

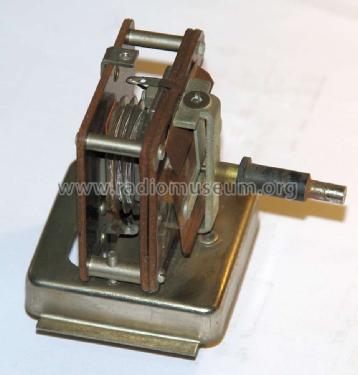

Sperrkreis UKd; Nora; Berlin (ID = 1406338) mod-past25
Use red slider bar for more.
Sperrkreis UKd; Nora; Berlin (ID = 1406336) mod-past25
Nora; Berlin: Sperrkreis UKd [mod-past25] ID = 1406336 933x995
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sperrkreis UKd, Nora; Berlin

Country:  Germany
Manufacturer / Brand:  Nora; Berlin
Year: 1936/1937 Category: Radio module post 1925 (not a part, not a key)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Sperrkreis UKd - Nora; Berlin
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 66 x 85 x 95 mm / 2.6 x 3.3 x 3.7 inch
Notes

Steckbarer Sperrkreis, z.B. für GW26, bestehend aus Eisenkernspule und variabler Kapazität, die aus einem federnden Blech und einer Glimmerscheibe gegen Masse gebildet wird.

Price in first year of sale 5.00 RM
Mentioned in HandB.d.d.Rundfunk-Handels 1936/37

Model page created by Joachim Glüder. See "Data change" for further contributors.
