Evolution 600
Nord-Radio; Paris
- Country
- France
- Manufacturer / Brand
- Nord-Radio; Paris
- Year
- 1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 336366
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 480 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Dry Batteries / 2 X 4,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
- Power out
- 0.2 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Evolution 600 - Nord-Radio; Paris
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 275 x 160 x 95 mm / 10.8 x 6.3 x 3.7 inch
- Notes
-
Le récepteur NORD-RADIO "EVOLUTION 600" présente les caractéristiques suivantes:
* Récepteur portatif
* Bloc d'accord à clavier 4 touches OC, PO, Ant. et GO (Oréor N44)
* Cadre ferroxcube de 200 mm (Oréor EC20)
* Amplificateur BF sans transformateur de sortie
* Haut-parleur 28 Ω
* Coffret bois gaîné.Nord-Radio propose la version en kit pour 170 FRF et l'ensemble en ordre de marche pour 210 FRF.
- Price in first year of sale
- 210.00 FRF
- Mentioned in

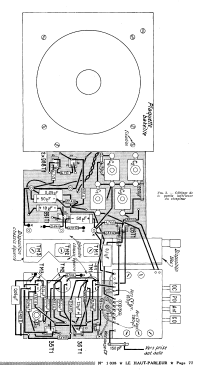

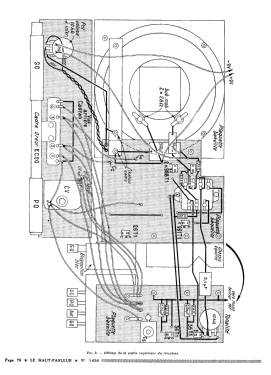

- Le Haut-Parleur (N°1038 d'avril 1961 pages 75 à 78.)
- Author
- Model page created by Jean-Pierre Ambroise. See "Data change" for further contributors.
