PK

PK ; Nordell & Koskinen, (ID = 948924) Radio PK ; Nordell & Koskinen, (ID = 920381) Radio
PK ; Nordell & Koskinen, (ID = 920383) Radio PK ; Nordell & Koskinen, (ID = 948922) Radio
PK ; Nordell & Koskinen, (ID = 948923) Radio
Use red slider bar for more.
PK ; Nordell & Koskinen, (ID = 948924) Radio
Nordell & Koskinen,: PK [Radio] ID = 948924 922x692
Select picture or schematic to display from thumbnails on the right and click for download.

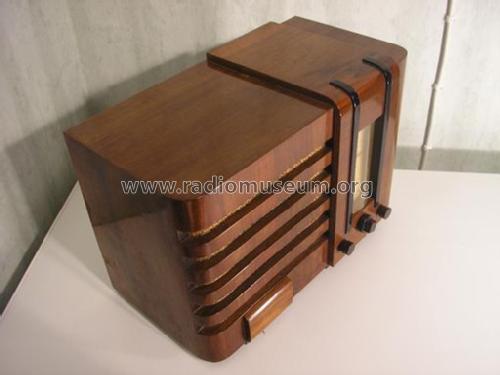

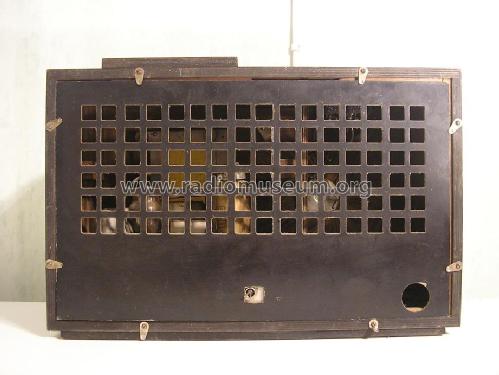

For model PK, Nordell & Koskinen, Salo

Country:  Finland
Manufacturer / Brand:  Nordell & Koskinen, Salo
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: KF1 KF2 KL4
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 120/2 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: PK - Nordell & Koskinen, Salo
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 460 x 310 x 250 mm / 18.1 x 12.2 x 9.8 inch
Mentioned in Keski-Suomen museo

Model page created by Lasse Nirhamo. See "Data change" for further contributors.



All listed radios etc. from Nordell & Koskinen, Salo
Here you find 12 models, 2 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
