• Year
  • 1975–1978
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 118522

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 52
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 7 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

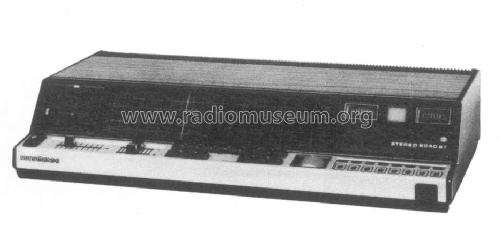

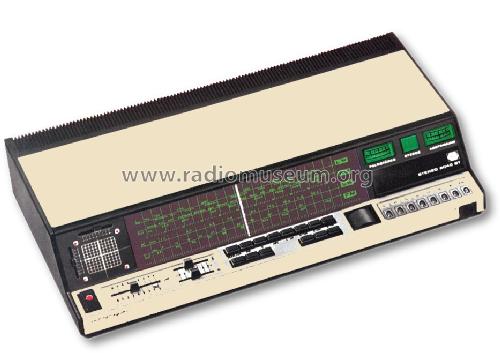

  • Model: 8040ST 6.152A - Nordmende, Norddeutsche Mende-
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 600 x 120 x 340 mm / 23.6 x 4.7 x 13.4 inch
  • Notes
  • ICs: 6.
    HiFi-Steuergerät. Ausgangsleistung: 2× 40 W (Sinus).
    Gehäuse: schwarz/nussbaumfarben, schwarz/weiß oder schwarz matt.
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Daniel Doll. See "Data change" for further contributors.
