For model All Step 1.108A (Ch= 770.108B), Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen:

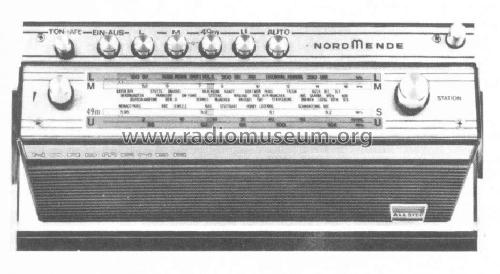

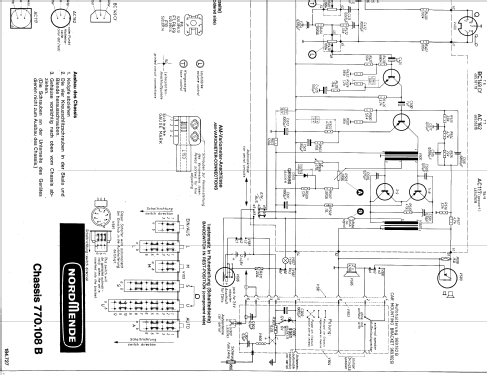

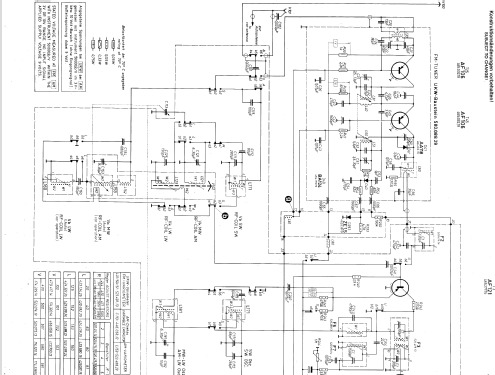

Bild aus Service Manual

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1969 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF106 AF106 AF121 AF126 AF126 BC149 AC162 AC117 AC117
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 2 × 4,5; 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 15 cm = 5.9 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: All Step 1.108A - Nordmende, Norddeutsche Mende-
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 275 x 175 x 77 mm / 10.8 x 6.9 x 3 inch
Notes 4 GE-Dioden, 1 SI-Diode, 3 SI-Stabilisatoren. Externe Stromversorgung über 9V Netzteil, oder 6/12V bei Einbau in KFZ mit Autohalterung 969.182.B.
Mentioned in -- Original-techn. papers.

Model page created by Daniel Doll. See "Data change" for further contributors.
