Ambassador 3.250.A Ch= 770.220.A

Ambassador 3.250.A Ch= 770.220.A; Nordmende, (ID = 1838596) Television

Ambassador 3.250.A Ch= 770.220.A; Nordmende, (ID = 1838597) Television

Ambassador 3.250.A Ch= 770.220.A; Nordmende, (ID = 1838598) Television

Ambassador 3.250.A Ch= 770.220.A; Nordmende, (ID = 1838599) Television
Ambassador 3.250.A Ch= 770.220.A; Nordmende, (ID = 1838593) Television
Use red slider bar for more.
Ambassador 3.250.A Ch= 770.220.A; Nordmende, (ID = 1838593) Television
Nordmende,: Ambassador 3.250.A Ch= 770.220.A [Television] ID = 1838593 933x766
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ambassador 3.250.A Ch= 770.220.A, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen:

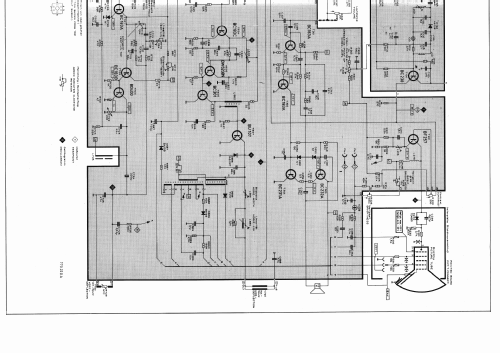

Bild aus Servicedoku.

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1970 ?? Category: Television Receiver (TV) or Monitor
Valves / Tubes 1:
Semiconductors (the count is only for transistors) 30:
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Ambassador 3.250.A Ch= 770.220.A - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Tablemodel, low profile (big size).
Literature/Schematics (1) -- Original-techn. papers. (Service Information 194.448.19)

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
