Automatic Recorder 6.403H
Use red slider bar for more.
Nordmende,: Automatic Recorder 6.403H [R-Player] ID = 482327 560x410

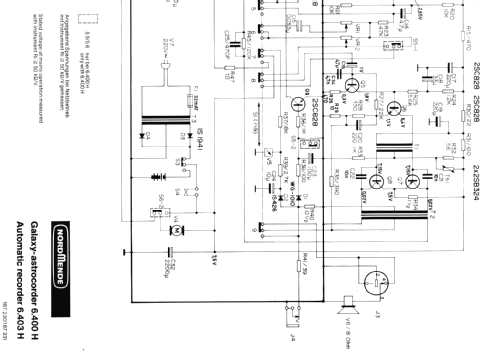

Select picture or schematic to display from thumbnails on the right and click for download.
For model Automatic Recorder 6.403H, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
|
|
Year:
1975–1977
|
Category: Sound/Video Recorder and/or Player |
Semiconductors (the count is only for transistors) |
11:
|
Main principle |
Audio-Amplification
|
Wave bands |
- without |
Details |
Cassette-Recorder or -Player |
Power type and voltage |
Line / Batteries (any type) / 220 / 4×1,5 Volt |
Loudspeaker |
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
Power out |
1 W (unknown quality) |
from Radiomuseum.org |
Model: Automatic Recorder 6.403H - Nordmende, Norddeutsche Mende- |
Material |
Plastics (no bakelite or catalin) |
Shape |
Portable set > 8 inch (also usable without mains) |
Dimensions (WHD) |
280 x 67 x 206 mm / 11 x 2.6 x 8.1 inch |
Notes |
Nordmende Automatic Recorder 6.400H. Frequenzumfang: 80···12000 Hz; eingebautes Mikrofon, Anschluss für Reporter-Mikrofon und Fernbedienungsschalter. |
Price in first year of sale |
159.00 DM |
Source of data |
Handbuch VDRG 1975/1976 |
Mentioned in |
Handbuch VDRG 1976/1977 |
Model page created by Bernd P. Kieck. See "Data change" for further contributors.
