For model Bornholm 971.128A Ch= 771.120B, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1970/1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: BF254 BF255 BF241 BF240 BF240 BC149 BC149 BC108 AC117 AC175 AA112 AA112 AA112 Si-Br-Gl
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: Bornholm 971.128A Ch= 771.120B - Nordmende, Norddeutsche Mende-
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 537 x 142 x 154 mm / 21.1 x 5.6 x 6.1 inch
Notes UKW: 87,5 - 108 MHz
KW: 5950 - 6200 kHz
MW: 515 - 1650 kHz
LW: 145 - 260 kHz

TA/TB-Buchse.

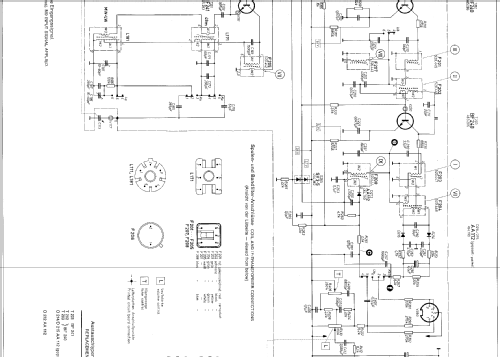

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Josef Pilz. See "Data change" for further contributors.
