Bornholm-Stereo Ch= 5/630 Nussbaum

Bornholm-Stereo Ch= 5/630; Nordmende, (ID = 1404740) Radio

Bornholm-Stereo Ch= 5/630; Nordmende, (ID = 1404741) Radio

Bornholm-Stereo Ch= 5/630; Nordmende, (ID = 1404742) Radio

Bornholm-Stereo Ch= 5/630; Nordmende, (ID = 1404743) Radio

Bornholm-Stereo Ch= 5/630; Nordmende, (ID = 1404744) Radio

Bornholm-Stereo Ch= 5/630; Nordmende, (ID = 1404745) Radio
Bornholm-Stereo Ch= 5/630; Nordmende, (ID = 357122) Radio
Use red slider bar for more.
Bornholm-Stereo Ch= 5/630; Nordmende, (ID = 357122) Radio

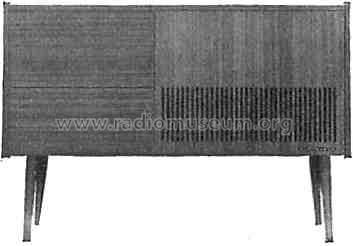

Nordmende,: Bornholm-Stereo Ch= 5/630 [Radio] ID = 357122 353x246
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bornholm-Stereo Ch= 5/630 Nussbaum, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EAF801 ECC808 EMM803 ELL80 ECC81
Semiconductors (the count is only for transistors) 1: AF117
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Bornholm-Stereo Ch= 5/630 [Nussbaum] - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1065 x 735 x 370 mm / 41.9 x 28.9 x 14.6 inch
Notes

Stereo-Decoder eingebaut;
Stereo-NF-Verstärker mit 2 Endstufen je 3 W;
Phono-Chassis = Elac PW16.

Net weight (2.2 lb = 1 kg) 32.5 kg / 71 lb 9.4 oz (71.586 lb)
Price in first year of sale 1'007.00 DM
External source of data Erb
Source of data Handbuch VDRG 1964/1965
Literature/Schematics (1) -- Original-techn. papers.
