For model Cabinet Ch= Uni 15 865.730.00, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen:

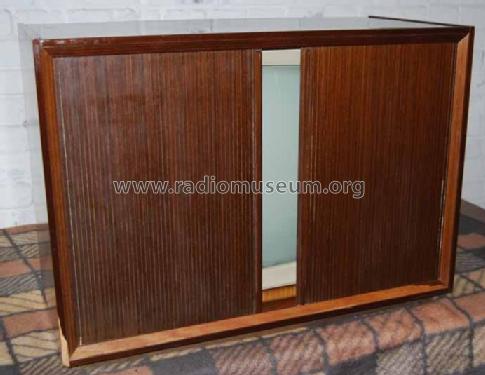

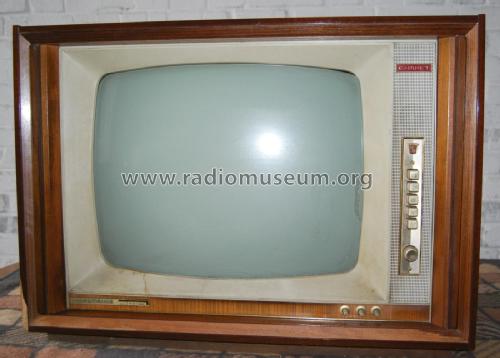

Ebay auction by user gebrauchtwaren-kw2011 151490691668

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1964/1965 Category: Television Receiver (TV) or Monitor
Valves / Tubes 9: PCL86 ECH84 PCL85 ECH84 ECC82 PL500 PY88 DY86 A59-11W or A59-12W
Semiconductors (the count is only for transistors) 14: AF109 AF106 AF106 AF139 AF139 AF121 AF106 AF121 BFY37 BFY41 AF126 AF126 AC125 AC125
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Cabinet Ch= Uni 15 865.730.00 - Nordmende, Norddeutsche Mende-
Material Wooden case

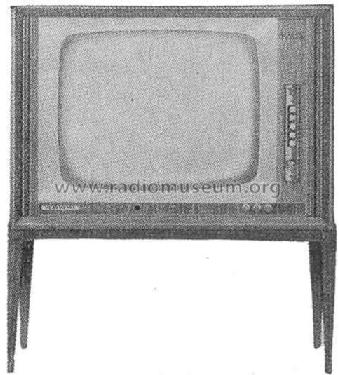

Shape Console with Push Buttons.
Dimensions (WHD) 770 x 860 x 445 mm / 30.3 x 33.9 x 17.5 inch
Notes VHF/UHF.
Net weight (2.2 lb = 1 kg) 40.3 kg / 88 lb 12.3 oz (88.767 lb)
Price in first year of sale 1'499.00 DM
Source of data Handbuch VDRG 1964/1965

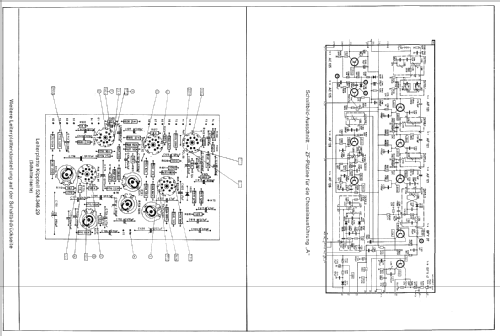

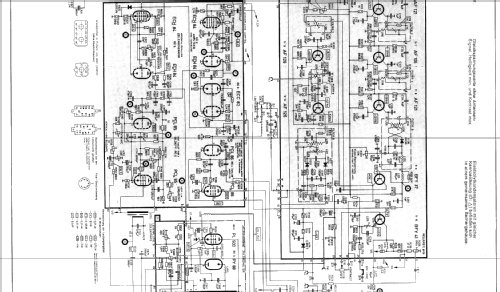

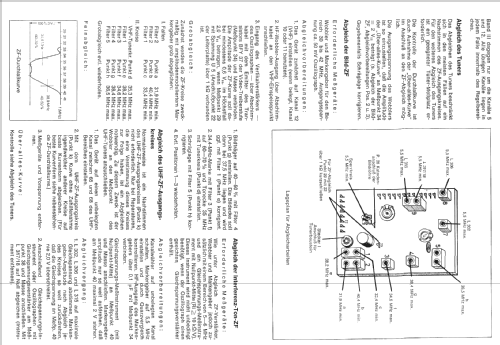

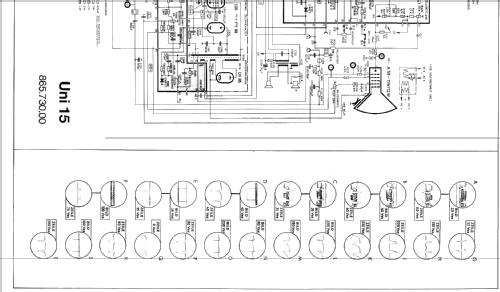

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
