Charleston 4.107A Ch= 174.107A)

Charleston 4.107A Ch= 174.107A); Nordmende, (ID = 801724) Radio Charleston 4.107A Ch= 174.107A); Nordmende, (ID = 801726) Radio
Charleston 4.107A Ch= 174.107A); Nordmende, (ID = 801727) Radio Charleston 4.107A Ch= 174.107A); Nordmende, (ID = 801728) Radio
Charleston 4.107A Ch= 174.107A); Nordmende, (ID = 801731) Radio Charleston 4.107A Ch= 174.107A); Nordmende, (ID = 834079) Radio
Charleston 4.107A Ch= 174.107A); Nordmende, (ID = 834080) Radio Charleston 4.107A Ch= 174.107A); Nordmende, (ID = 834082) Radio
Use red slider bar for more.
Charleston 4.107A Ch= 174.107A); Nordmende, (ID = 801724) Radio
Nordmende,: Charleston 4.107A Ch= 174.107A) [Radio] ID = 801724 920x771
Select picture or schematic to display from thumbnails on the right and click for download.

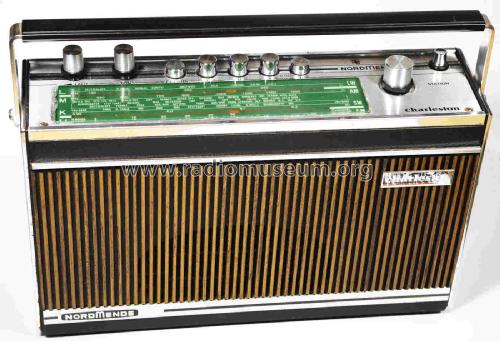

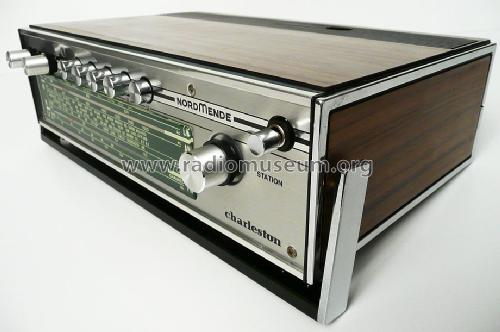

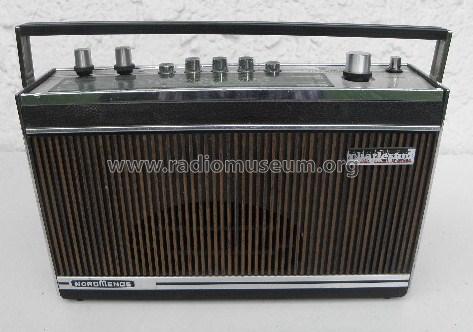

For model Charleston 4.107A Ch= 174.107A), Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1973 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF ?/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220; 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Charleston 4.107A Ch= 174.107A) - Nordmende, Norddeutsche Mende-
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 304 x 217 x 82 mm / 12 x 8.5 x 3.2 inch
Notes Am Boden wird das Radio durch "Typ 107" ausgewiesen.
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Source of data - - Data from my own collection

Model page created by Guido Höh. See "Data change" for further contributors.
