charleston 975.196.A

Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Year
1974/1975

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
29495

Schematics

charleston 975.196.A; Nordmende, (ID = 121571) Radio — Nordmende, charleston 975.196.A (3)

charleston 975.196.A; Nordmende, (ID = 121572) Radio — Nordmende, charleston 975.196.A (3)

charleston 975.196.A; Nordmende, (ID = 121573) Radio — Nordmende, charleston 975.196.A (3)

charleston 975.196.A; Nordmende, (ID = 121575) Radio — Nordmende, charleston 975.196.A (3)

charleston 975.196.A; Nordmende, (ID = 121576) Radio — Nordmende, charleston 975.196.A (3)

charleston 975.196.A; Nordmende, (ID = 121574) Radio — Nordmende, charleston 975.196.A (3)

charleston 975.196.A; Nordmende, (ID = 121577) Radio — Nordmende, charleston 975.196.A (3)

charleston 975.196.A; Nordmende, (ID = 121578) Radio — Nordmende, charleston 975.196.A (3)

charleston 975.196.A; Nordmende, (ID = 1891909) Radio — Nordmende, charleston 975.196.A (3)

charleston 975.196.A; Nordmende, (ID = 1891910) Radio — Nordmende, charleston 975.196.A (3)

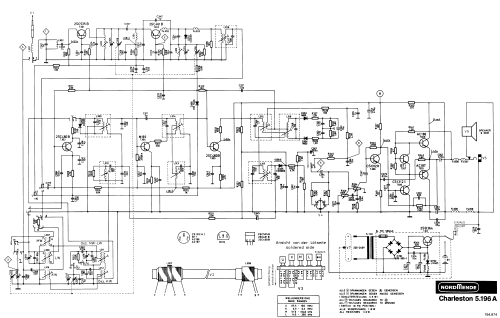

charleston 975.196.A; Nordmende, (ID = 1891913) Radio — Nordmende, charleston 975.196.A (3)

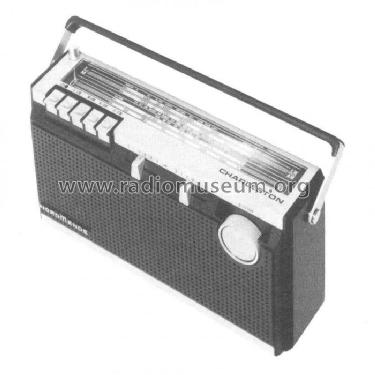

charleston 975.196.A; Nordmende, (ID = 121579) Radio — Nordmende, charleston 975.196.A (2)
Bild aus Service Manual

charleston 975.196.A; Nordmende, (ID = 1811306) Radio — Nordmende, charleston 975.196.A (1)

charleston 975.196.A; Nordmende, (ID = 1811307) Radio — Nordmende, charleston 975.196.A (1)

charleston 975.196.A; Nordmende, (ID = 1811308) Radio — Nordmende, charleston 975.196.A (1)

charleston 975.196.A; Nordmende, (ID = 1811309) Radio — Nordmende, charleston 975.196.A (1)

charleston 975.196.A; Nordmende, (ID = 1811310) Radio — Nordmende, charleston 975.196.A (1)

charleston 975.196.A; Nordmende, (ID = 1827603) Radio — Nordmende, charleston 975.196.A (1)

charleston 975.196.A; Nordmende, (ID = 2001058) Radio — Nordmende, charleston 975.196.A (1)

charleston 975.196.A; Nordmende, (ID = 2001059) Radio — Nordmende, charleston 975.196.A (1)

charleston 975.196.A; Nordmende, (ID = 2001060) Radio — Nordmende, charleston 975.196.A (1)

charleston 975.196.A; Nordmende, (ID = 2652488) Radio — Nordmende, charleston 975.196.A (1)

charleston 975.196.A; Nordmende, (ID = 2652489) Radio — Nordmende, charleston 975.196.A (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
11

Semiconductors

Main principle
Superheterodyne (common); ZF/IF 460/10700 kHz

Tuned circuits
5 AM circuit(s) 8 FM circuit(s)

Wave bands
Broadcast, Long Wave, Short Wave plus FM or UHF.

Power type and voltage
Line / Batteries (any type) / 220 / 6 × 1,5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

Power out
1.5 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: charleston 975.196.A - Nordmende, Norddeutsche Mende-

Shape
Portable set > 8 inch (also usable without mains)

Dimensions (WHD)
280 x 150 x 80 mm / 11 x 5.9 x 3.1 inch

Notes

Net weight (2.2 lb = 1 kg)
1.7 kg / 3 lb 11.9 oz (3.744 lb)

External source of data
Erb

Source of data
Katalog RFP 1974
