• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1983

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 163016

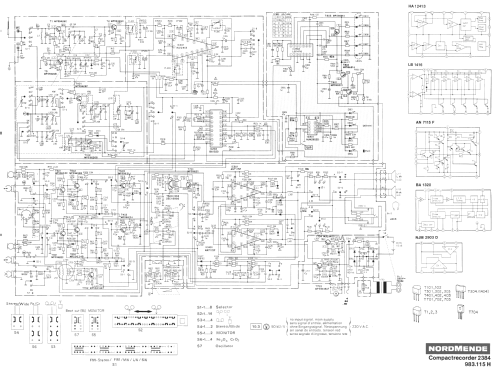

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 6× 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8.3 cm = 3.3 inch

• Power out
• 4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

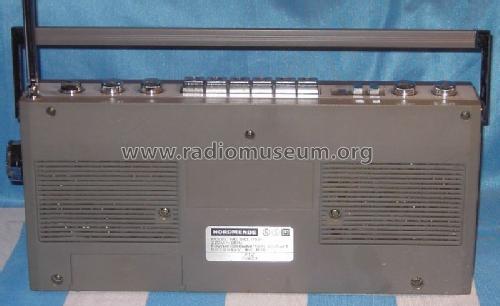

• Model: Compact Recorder 2384 - 983.115H Stereo 4 Band Radiorecorder - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 360 x 175 x 70 mm / 14.2 x 6.9 x 2.8 inch

• Notes

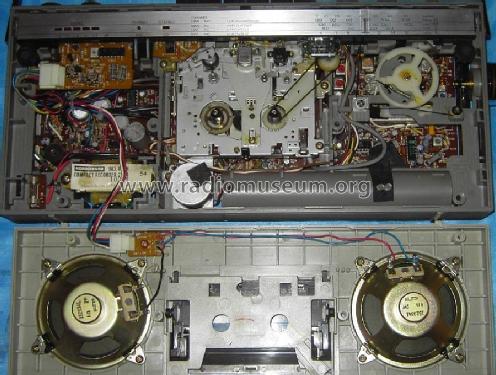

• Bedienelemente: Lautstärke, Balance, Bass, Höhen, Tasten: Stereo/Wide, Normalband/CrO2, Cassette/Radio, 2-Stufen Rif-Schalter, Monitor-Schalter, DIN-Buchse TB/PU/Mic, Kopfhörerbuchse 6,5mm Klinke. 2 eingebaute Microfone, 5-stufige LED Level-Anzeige, LED für Abstimmung und LED für Stereobetrieb. 2 Lautsprecher: 2 W , 4 Ohm, 8,3 cm (1520341), Ferritantenne: 140 mm rund 10 mm mit 2 Abflachungen, Teleskop-Antenne. Bandbetrieb: Tasten: PAUSE/STOP-EJECT/FR/FF/PLAY/REC. Mehrere IC mit unterschiedlichen Funktionen, eingebautes Netzteil.

• Net weight (2.2 lb = 1 kg)
• 2.4 kg / 5 lb 4.6 oz (5.286 lb)

• Author
• Model page created by Alfred Przybilla. See "Data change" for further contributors.
