• Year
  • 1974 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 80386

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 5 AM circuit(s)     8 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Digital Clock 272 9.172H - Nordmende, Norddeutsche Mende-
  • Dimensions (WHD)
  • 300 x 75 x 175 mm / 11.8 x 3 x 6.9 inch
  • Notes
  • 12 Dioden, 2 IC's, 4fach LED Anzeige 15mm Ziffernhöhe
  • External source of data

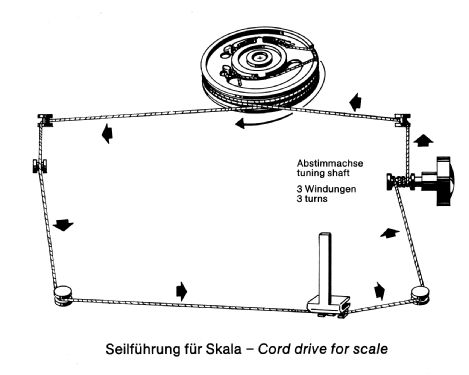

  • Service Manual
  • Author
  • Model page created by Daniel Doll. See "Data change" for further contributors.
