• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1971–1975

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 198371

• Number of Tubes
• 7

• Valves / Tubes
• ZM1000

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Digital-Zähler 35 MHz Counter DIC-3357 - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel, low profile (big size).

• Notes
• Maximale Zählfrequenz 35 MHz; Eingangwiderstand 1 MOhm/25 pF;
  Eingangsempfindlichkeit Sinus 30 mVeff bis 35 MHz; Impulse 50 mV, 25 ns Pulsbreite; Zeitbasis: 10 MHz bis 1 Hz;
  Betriebsarten: Frequenzmessung, Zeitintervall, Periodendauer und Multiperioden; Umschaltung auf externes Zeitnormal.

• Price in first year of sale
• 2,616.00 DM

• Mentioned in
• (A) Radio Elektronik Schau; Heft 11, 1975 Werbeschaltung

• Literature/Schematics (1)

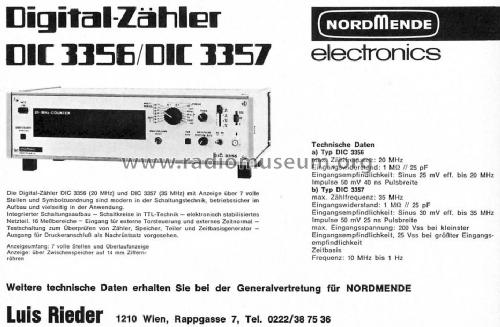

• -- Original prospect or advert (Nordmende Messgeräte Katalog 1971/72)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
