• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1970

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 152996

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

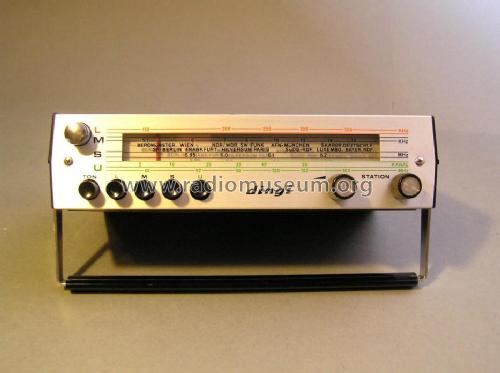

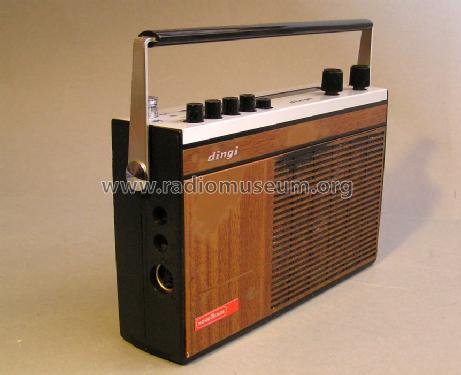

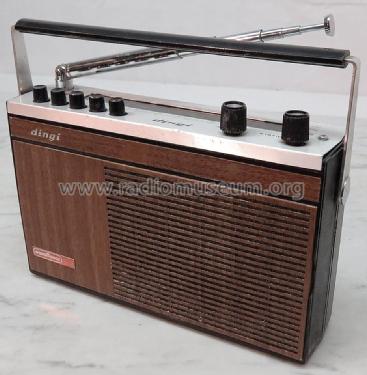

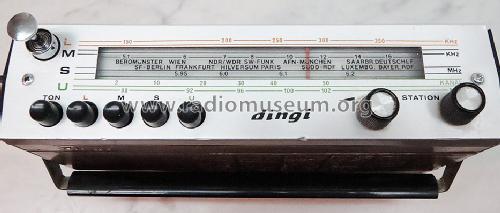

• Model: Dingi - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 215 x 140 x 55 mm / 8.5 x 5.5 x 2.2 inch

• Notes
• Sinusausgangsleistung: 0,4 W; Spitzenleistung 0,8 W; KW: 49-m-Band; Klangtaste; Anschlüsse: TA/TB.

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Gerhard Weiss. See "Data change" for further contributors.
