• Year
  • 1975/1976
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 89467

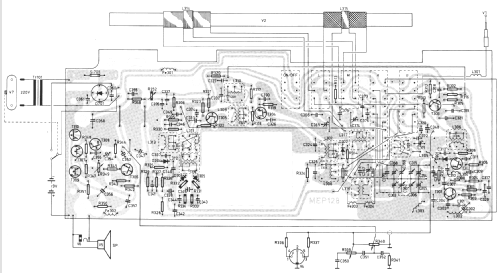

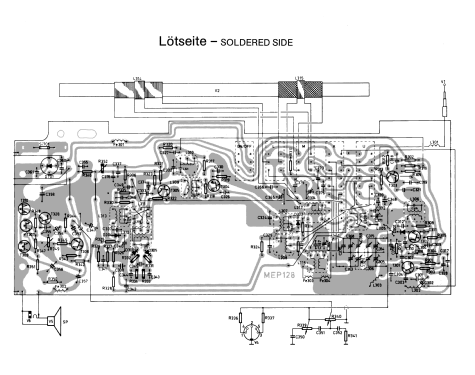

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 10
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 5 AM circuit(s)     8 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 220; (6 × 1,5) Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 2 W (unknown quality)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Dixieland 6.198H - Nordmende, Norddeutsche Mende-
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 290 x 160 x 75 mm / 11.4 x 6.3 x 3 inch
  • Notes
  • UKW: 87,5 - 108 MHz
    KW: 5800 - 16000 kHz
    MW: 510 - 1640 kHz
    LW: 145 - 260 kHz

    Anschlüsse für: TA/TB, Ohrhörer.
  • Net weight (2.2 lb = 1 kg)
  • 1.4 kg / 3 lb 1.3 oz (3.084 lb)
  • Source of data
  • -- Original-techn. papers.
  • Author
  • Model page created by Daniel Doll. See "Data change" for further contributors.
