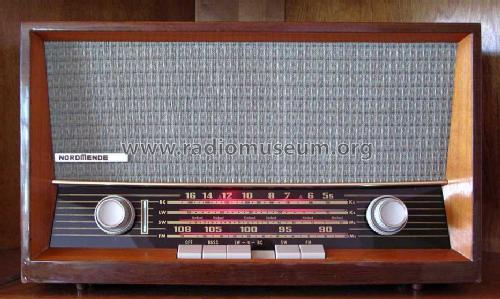

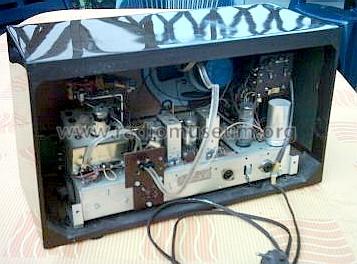

Elektra F13 Ch= 5/613

Elektra F13 Ch= 5/613; Nordmende, (ID = 51856) Radio

Elektra F13 Ch= 5/613; Nordmende, (ID = 51858) Radio

Elektra F13 Ch= 5/613; Nordmende, (ID = 687678) Radio

Elektra F13 Ch= 5/613; Nordmende, (ID = 687679) Radio

Elektra F13 Ch= 5/613; Nordmende, (ID = 687680) Radio

Elektra F13 Ch= 5/613; Nordmende, (ID = 687681) Radio
Elektra F13 Ch= 5/613; Nordmende, (ID = 1096837) Radio Elektra F13 Ch= 5/613; Nordmende, (ID = 1096838) Radio
Elektra F13 Ch= 5/613; Nordmende, (ID = 1096839) Radio Elektra F13 Ch= 5/613; Nordmende, (ID = 110206) Radio
Elektra F13 Ch= 5/613; Nordmende, (ID = 110207) Radio Elektra F13 Ch= 5/613; Nordmende, (ID = 110208) Radio
Elektra F13 Ch= 5/613; Nordmende, (ID = 1297949) Radio Elektra F13 Ch= 5/613; Nordmende, (ID = 1498972) Radio
Elektra F13 Ch= 5/613; Nordmende, (ID = 1804121) Radio Elektra F13 Ch= 5/613; Nordmende, (ID = 2600920) Radio
Use red slider bar for more.
Elektra F13 Ch= 5/613; Nordmende, (ID = 1096837) Radio
Nordmende,: Elektra F13 Ch= 5/613 [Radio] ID = 1096837 800x600

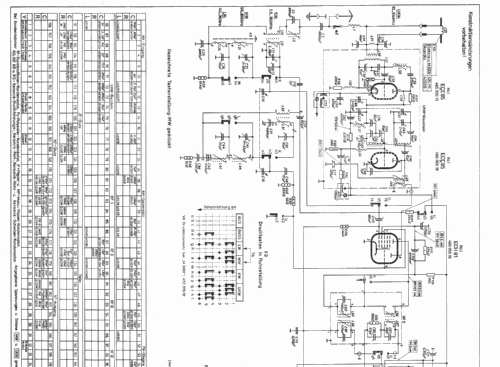

Select picture or schematic to display from thumbnails on the right and click for download.
For model Elektra F13 Ch= 5/613, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EBF89 ECL86 EM84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Elektra F13 Ch= 5/613 - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 415 x 245 x 180 mm / 16.3 x 9.6 x 7.1 inch
Notes Dioden: 2× OA79.
Net weight (2.2 lb = 1 kg) 5.8 kg / 12 lb 12.4 oz (12.775 lb)
Price in first year of sale 385.00 DM
External source of data Erb
Source of data Handbuch VDRG 1964/1965
Mentioned in -- Original-techn. papers.
