Essex N 2.116C (Ch= 972.116C)

Essex N 2.116C ; Nordmende, (ID = 98776) Radio

Essex N 2.116C ; Nordmende, (ID = 98777) Radio

Essex N 2.116C ; Nordmende, (ID = 98779) Radio

Essex N 2.116C ; Nordmende, (ID = 98780) Radio

Essex N 2.116C ; Nordmende, (ID = 98778) Radio

Essex N 2.116C ; Nordmende, (ID = 98781) Radio
Essex N 2.116C ; Nordmende, (ID = 768175) Radio Essex N 2.116C ; Nordmende, (ID = 768170) Radio
Essex N 2.116C ; Nordmende, (ID = 768173) Radio Essex N 2.116C ; Nordmende, (ID = 98782) Radio
Essex N 2.116C ; Nordmende, (ID = 768171) Radio Essex N 2.116C ; Nordmende, (ID = 768172) Radio
Essex N 2.116C ; Nordmende, (ID = 768174) Radio Essex N 2.116C ; Nordmende, (ID = 1301913) Radio
Essex N 2.116C ; Nordmende, (ID = 1322083) Radio Essex N 2.116C ; Nordmende, (ID = 1691342) Radio
Use red slider bar for more.
Essex N 2.116C ; Nordmende, (ID = 768175) Radio
Nordmende,: Essex N 2.116C [Radio] ID = 768175 933x562

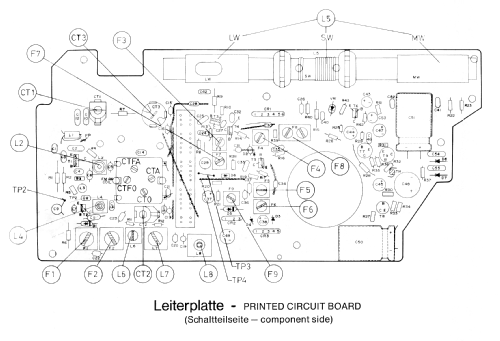

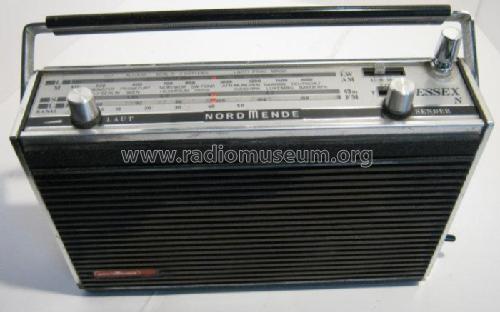

Select picture or schematic to display from thumbnails on the right and click for download.
For model Essex N 2.116C (Ch= 972.116C), Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1971/1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: 2SC535 2SC535 2SC460 2SC460 2SC460 2SC458 2SB77 2SB77 2SD77
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / AC 220; Batt. 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 12.5 cm = 4.9 inch
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: Essex N 2.116C - Nordmende, Norddeutsche Mende-
Material Modern plastics (no Bakelite or Catalin)
Dimensions (WHD) 212 x 140 x 52 mm / 8.3 x 5.5 x 2 inch
Notes Frequenzbereich: UKW 88...108 MHz; KW 5,95...6,20 MHz; MW 520...1600 kHz; LW 150...300 kHz. 9 tlg. schwenkbare Teleskopantenne (70 cm). Ferritantenne (14 cm). 49m Band. Lang und Mittelwellen-Skala mit Ländernamen. Anschluß für Tonbandgerät oder Kassettenrecorder über 5-pol DIN Buchse. Kopfhöreranschluß (Klinke 3,5 mm). 9 Dioden.
Wie Essex, jedoch mit eingebautem Netzteil.
Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Daniel Doll. See "Data change" for further contributors.
