Fidelio 1014 (983.125H)

Fidelio 1014 ; Nordmende, (ID = 863632) Radio

Fidelio 1014 ; Nordmende, (ID = 863635) Radio

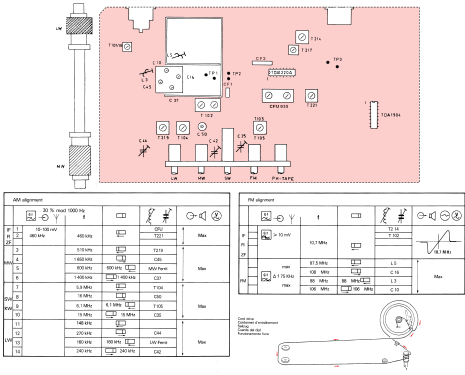

Fidelio 1014 ; Nordmende, (ID = 863629) Radio

Fidelio 1014 ; Nordmende, (ID = 863630) Radio

Fidelio 1014 ; Nordmende, (ID = 863637) Radio
Fidelio 1014 ; Nordmende, (ID = 735466) Radio Fidelio 1014 ; Nordmende, (ID = 735435) Radio
Fidelio 1014 ; Nordmende, (ID = 470791) Radio Fidelio 1014 ; Nordmende, (ID = 760989) Radio
Fidelio 1014 ; Nordmende, (ID = 1280531) Radio Fidelio 1014 ; Nordmende, (ID = 1287401) Radio
Fidelio 1014 ; Nordmende, (ID = 1884528) Radio Fidelio 1014 ; Nordmende, (ID = 1884529) Radio
Fidelio 1014 ; Nordmende, (ID = 1884530) Radio Fidelio 1014 ; Nordmende, (ID = 1884531) Radio
Use red slider bar for more.

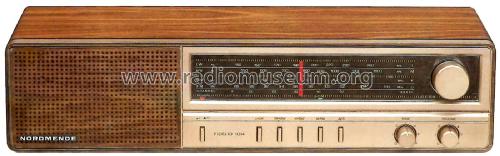

Fidelio 1014 ; Nordmende, (ID = 735466) Radio
Nordmende,: Fidelio 1014 [Radio] ID = 735466 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Fidelio 1014 (983.125H), Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1982/1983 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 4: BF506 BF506 BF506 BF253 TDA1220 TDA1905 BA244 BA244 1N4148 BA121 ZD7,5 Si-Br-Gl
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Fidelio 1014 - Nordmende, Norddeutsche Mende-
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 480 x 115 x 165 mm / 18.9 x 4.5 x 6.5 inch
Notes UKW: 87,5 - 108 MHz
KW: 5900 - 16300 kHz
MW: 520 - 1630 kHz
LW: 150 - 270 kHz
Net weight (2.2 lb = 1 kg) 2.1 kg / 4 lb 10 oz (4.626 lb)

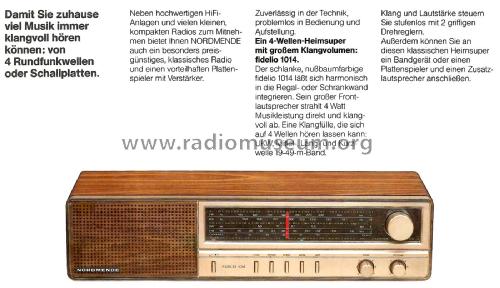

Source of data -- Original prospect or advert
Mentioned in -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.



All listed radios etc. from Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Here you find 1719 models, 1610 with images and 1239 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.


Collection of a member from D
Collection of a member from D




Forum contributions about this model
Nordmende,: Fidelio 1014
Threads: 1 | Posts: 1
Hits: 2373     Replies: 0
nordmende: 1014 (983.125H); Fidelio
Claus Marker
26.Feb.10
  1

  4 Transistoren,2 IC,6 Dioden
