• Year
  • 1971/1972
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 28623

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / AC 127;220; Batt. 2 × 4,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 2 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Galaxy-mesa 4000 2.110L - Nordmende, Norddeutsche Mende-
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 348 x 192 x 81 mm / 13.7 x 7.6 x 3.2 inch
  • Notes
  • KW1: 7,1···18 MHz, KW2: 15,1···15,5 MHz, KW3: 5,95···6,2 MHz.

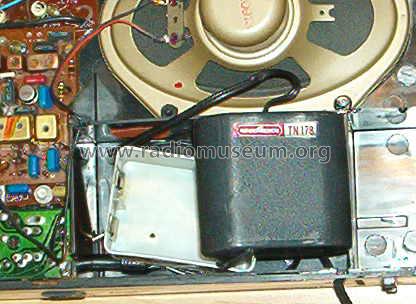

    Netzanschlussgerät: TN178
  • Net weight (2.2 lb = 1 kg)
  • 2.5 kg / 5 lb 8.1 oz (5.507 lb)
  • External source of data
  • Erb
