• Year
  • 1970
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 120089

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 20
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Storage and/or dry batteries / 9 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

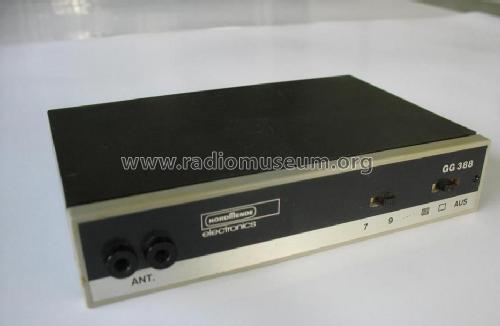

  • Model: Gittergeber GG388 - Nordmende, Norddeutsche Mende-
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 160 x 32 x 103 mm / 6.3 x 1.3 x 4.1 inch
  • Notes
  • Volltransistorisierter Gittergeber mit Batteriespeisung.
    Funktionen "Weiß" und Gittermuster. 240-Ohm-Ausgang.
  • Net weight (2.2 lb = 1 kg)
  • 0.3 kg / 0 lb 10.6 oz (0.661 lb)
  • Price in first year of sale
  • 280.00 DM
  • Source of data
  • -- Original-techn. papers.
  • Mentioned in
  • -- Original prospect or advert (Nordmende Messgeräte Katalog 1970)
  • Author
  • Model page created by Manfred Schwen. See "Data change" for further contributors.
