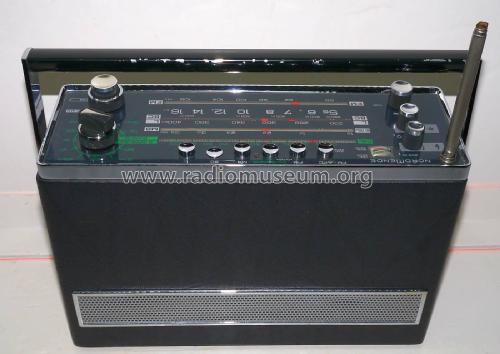

For model Globetraveler Ch= 7/601C, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1966–1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 14: AF106 AF106 AF106 AF125 AF125 AF126 AF126 AF126 AF137a AC163 AC162 AC162 AC117 AC117
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     13 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Dry Batteries / 5 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Globetraveler Ch= 7/601C - Nordmende, Norddeutsche Mende-
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 310 x 209 x 105 mm / 12.2 x 8.2 x 4.1 inch
Notes

The Globetraveler 7/601C is the export version of model Globetrotter Ch= 7/601. It has FM up to 108 MHz.

Net weight (2.2 lb = 1 kg) 3.8 kg / 8 lb 5.9 oz (8.37 lb)

Model page created by Ernst Erb. See "Data change" for further contributors.



All listed radios etc. from Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Here you find 1714 models, 1605 with images and 1234 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Nordmende,: Globetraveler Ch= 7/601C
Threads: 1 | Posts: 2
Hits: 2314     Replies: 1
nordmende: 7/601C; Globe Traveler (Globetrotter)
Michael Witas
10.Feb.13
  1

I Have a globetraveler 7/601, which I recently purchased.

It is missing the two flat head screws that secure the battery cover at the bottom of the radio.

The screws go through holes in the plastic cabinet and into threaded holes in the metal radio chassis.

Can anyone tell me the thread size?

Can anyone tell me where I can get some replacement screws? Would Burklin  or some other European vendor have them?

I could just find some screws at a hardware store that are close, but do not want to destroy the threads in the radio chassis. The radio is otherwise in almost perfect condition.

Thanks and best regards,

Mike Witas

Milwaukee, Wisconsin USA

David Erali
05.Nov.20
  2

Screws are 0.5 mm thread.
