• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1980 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 133456

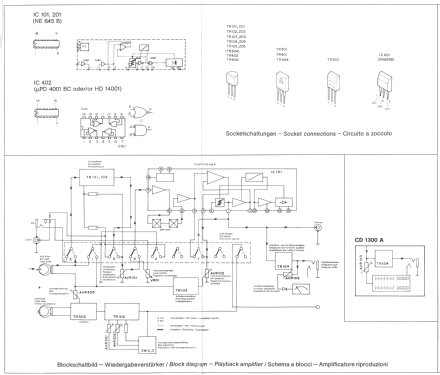

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Philharmonic CD 1000A 982.174H - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 440 x 105 x 238 mm / 17.3 x 4.1 x 9.4 inch

• Notes

• 3 ICs, Tipptastensteuerung, Dolby B, analoge VU-Meter, Hallsensor an Zählwerk zur Bandtransportkontrolle
  Eingänge: DIN, Line in und MIC
  Ausgänge: DIN, Line out und Phones
  Bodenplatte aus Presspan, Alufront, Rest Blech.

  See also Thomson Española, S.A. CD-304

• Author
• Model page created by Klaus Ortwein. See "Data change" for further contributors.
