• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1973–1977

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 29437

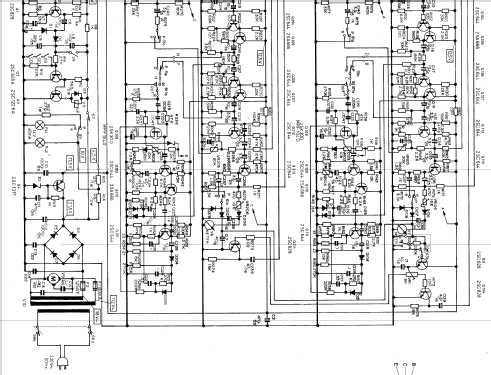

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 37

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: HiFi Stereo-Recorder 6000 4.434.A - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 345 x 85 x 230 mm / 13.6 x 3.3 x 9.1 inch

• Notes
• Dolby. Mithörmöglichkeit über Kopfhörer.

• Net weight (2.2 lb = 1 kg)
• 4.8 kg / 10 lb 9.2 oz (10.573 lb)

• Price in first year of sale
• 398.00 DM

• External source of data
• Erb

• Source of data
• Katalog RFP 1974

• Mentioned in
• Handbuch VDRG 1976/1977

• Literature/Schematics (1)
• Funk-Technik (FT) (21/1973, S. 803 / Neuvorstellung, Messe Berlin)
